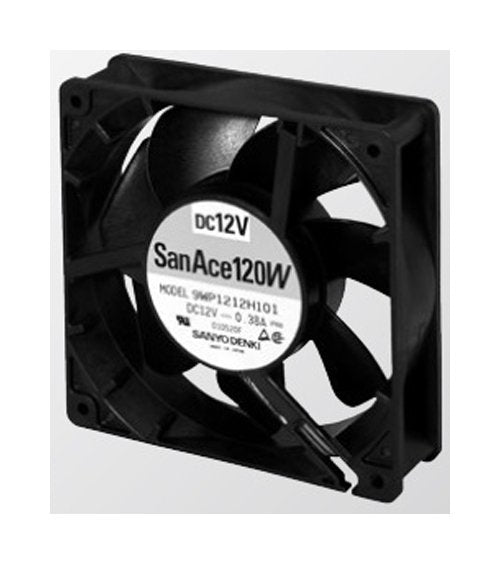

San Ace 120W Series Splash Proof Fan - 120x120x38 mm, 12V, 1.68W
San Ace 120W Series Splash Proof Fan - 120x120x38 mm, 12V, 1.68W
SKU:SAN-5eaf19
Efficient and durable 120x120x38 mm fan with UL94V-0 flammability rating, 1.68W power consumption
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 120W Series Splash Proof Fan - 120x120x38 mm, 12V, 1.68W
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 120W Series Splash Proof Fan - 120x120x38 mm, 12V, 1.68W
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 120W Series Splash Proof Fan is a reliable cooling solution designed for industrial environments. With a durable plastic frame and impeller, this fan meets UL94V-0 flammability standards, ensuring safety. Operating at 12V with a rated current of 0.14A, it provides efficient airflow of 1.62 m³/min and a low sound pressure level of 26 dBA. Built to last with an expected lifespan of 40,000 hours at 60°C, this fan is ideal for meeting the cooling needs of various applications.
Product Specifications
Specifications Air Flow
1.62 m³/min | 57.2 ft³/min
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Dimensions
120 x 120 x 38 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
360 g
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
10.2 to 13.8 V
Specifications Rated Current
0.14 A
Specifications Rated Input Power
1.68 W
Specifications Rated Speed
1500 rpm
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
26 dBA
Specifications Static Pressure
23.4 Pa | 0.094 inH2O
