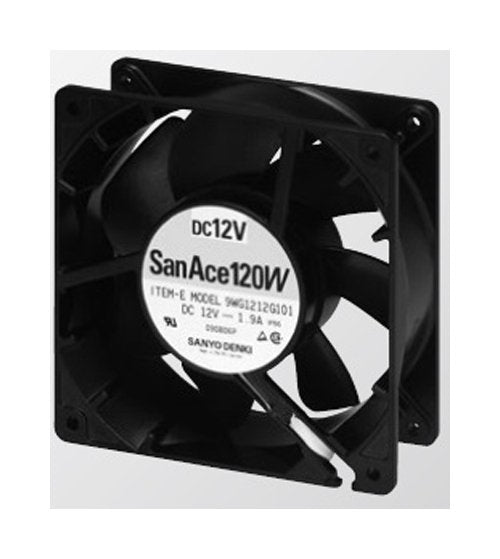

San Ace 120W Series Splash Proof Fan - 120x120x38mm
San Ace 120W Series Splash Proof Fan - 120x120x38mm
SKU:SAN-799920
San Ace 120W Series Splash Proof Fan - Premium cooling solution for industrial needs
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
San Ace 120W Series Splash Proof Fan - 120x120x38mm
$49.99
Quantity: 1
Claim Your Seller Account
San Ace 120W Series Splash Proof Fan - 120x120x38mm
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 120W Series Splash Proof Fan is a top-of-the-line cooling solution designed for industrial and institutional applications. With a durable Aluminum frame and UL94V-1 rated Plastics impeller, this fan ensures reliable performance in challenging environments. Operating at a rated voltage of 12V and producing an air flow of 2.80 m³/min, it maintains optimal temperatures while operating quietly at 39 dBA. This fan is built to last with an expected life of 100,000 hours at 60ºC, perfect for high-demand settings.
Product Specifications
Specifications Air Flow
2.80 m³/min | 99 ft³/min
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black | Blue
Specifications Dimensions
120 x 120 x 38 mm
Specifications Expected Life At 60c
100000 hours
Specifications Frame Material
Aluminum
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
410 g
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
7 to 13.8 V
Specifications Rated Current
0.38 A
Specifications Rated Input Power
4.56 W
Specifications Rated Speed
2600 rpm
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
39 dBA
Specifications Static Pressure
70.4 Pa | 0.283 inH2O
