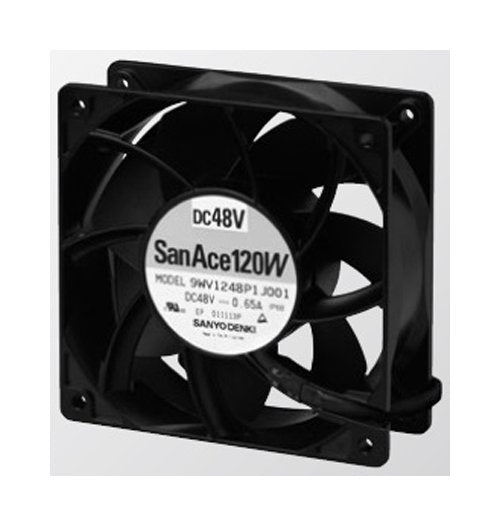

San Ace 120W Series Splash Proof Fan - 48V, 120x120x38mm
San Ace 120W Series Splash Proof Fan - 48V, 120x120x38mm
SKU:SAN-36b408
Enhance airflow with the San Ace 120W Splash Proof Fan - 48V, ideal for robust cooling needs. Durable construction, PWM support, and long lifespan.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
San Ace 120W Series Splash Proof Fan - 48V, 120x120x38mm
$49.99
Quantity: 1
Claim Your Seller Account
San Ace 120W Series Splash Proof Fan - 48V, 120x120x38mm
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 120W Series Splash Proof Fan is a durable cooling solution designed for reliable performance. With a rated voltage of 48V and a sturdy aluminum frame, this fan ensures efficient operation in challenging environments. It features UL94V-1 rated plastics and meets stringent specifications including a wide operating temperature range, PWM function, and extended lifespan of up to 60,000 hours at 60°C. Ideal for applications requiring high airflow and low noise levels.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Dimensions
120 x 120 x 38 mm
Specifications Expected Life At 60c
60,000 hours
Specifications Frame Material
Aluminum
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
440 g
Specifications Maximum Air Flow
6.35 m³/min | 224.0 ft³/min
Specifications Maximum Rated Current
0.65 A
Specifications Maximum Rated Input Power
31.2 W
Specifications Maximum Rated Speed
6400 rpm
Specifications Maximum Sound Pressure Level
64 dBA
Specifications Maximum Static Pressure
360 Pa | 1.45 inH2O
Specifications Minimum Air Flow
1.49 m³/min | 52.6 ft³/min
Specifications Minimum Rated Current
0.06 A
Specifications Minimum Rated Input Power
2.88 W
Specifications Minimum Rated Speed
1500 rpm
Specifications Minimum Sound Pressure Level
33 dBA
Specifications Minimum Static Pressure
26.1 Pa | 0.105 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Note
Fan does not rotate when Pulse-Width Modulation (PWM) duty cycle is 0%.
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
40.8 to 55.2 V
Specifications Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Pulse Width Modulation Pwm Frequency
25 kHz
Specifications Rated Voltage
48 V
Specifications Sensor Lead Wire Color
Yellow
