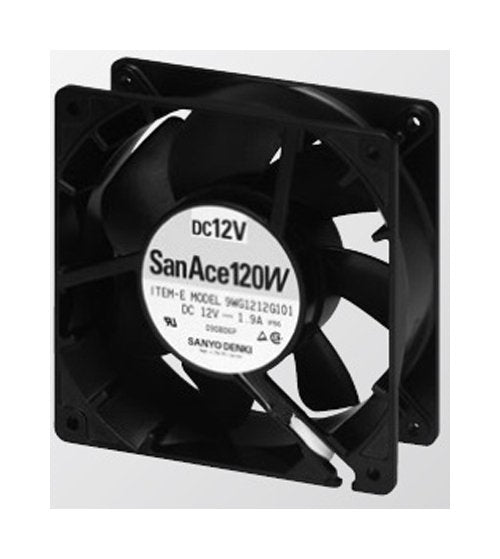

San Ace 120W Series Splash Proof Fan 9WG1248G101-E

Name: San Ace 120W Series Splash Proof Fan 9WG1248G101-E
Brand: Marsh Electronics, Inc.
SKU: SAN-bd3991
Price: 45.99 USD
Availability: OutOfStock

SKU:SAN-bd3991

San Ace 120W Series Splash Proof Fan – Optimal cooling performance in demanding environments. Durable, efficient, and reliable.

$45.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The San Ace 120W Series Splash Proof Fan (Model: 9WG1248G101-E) is designed for optimal cooling performance in demanding environments. With dimensions of 120 x 120 x 38 mm and a lightweight aluminum frame, this fan is built for durability. The impeller is made of UL94V-1 rated plastics ensuring safety. Operating at a rated voltage of 48V and a rated speed of 3600 rpm, it delivers a powerful airflow of 3.88 m³/min while maintaining a low sound pressure level of 49 dBA. With a wide operating temperature range of -20 to +70 ºC and an expected life of 80,000 hours at 60 ºC, this fan is reliable and efficient, making it an ideal choice for industrial and institutional cooling applications.

Product Specifications

Specifications Air Flow

3.88 mÂ³/min | 137 ftÂ³/min

Specifications Anode Lead Wire Color

Red

Specifications Cathode Lead Wire Color

Black | Blue

Specifications Dimensions

120 x 120 x 38 mm

Specifications Expected Life At 60c

80000 hours

Specifications Frame Material

Aluminum

Specifications Impeller Material

Plastics (Flammability: UL94V-1)

Specifications Mass

410 g

Specifications Non Condensing Storage Temperature

-30 to +70 ÂºC

Specifications Operating Temperature Range

-20 to +70 ÂºC

Specifications Operating Voltage Range

40.8 to 55.2 V

Specifications Rated Current

0.25 A

Specifications Rated Input Power

12 W

Specifications Rated Speed

3600 rpm

Specifications Rated Voltage

48 V

Specifications Sensor Lead Wire Color

Yellow

Specifications Sound Pressure Level

49 dBA

Specifications Static Pressure

135 Pa | 0.542 inH2O

San Ace 120W Series Splash Proof Fan 9WG1248G101-E
