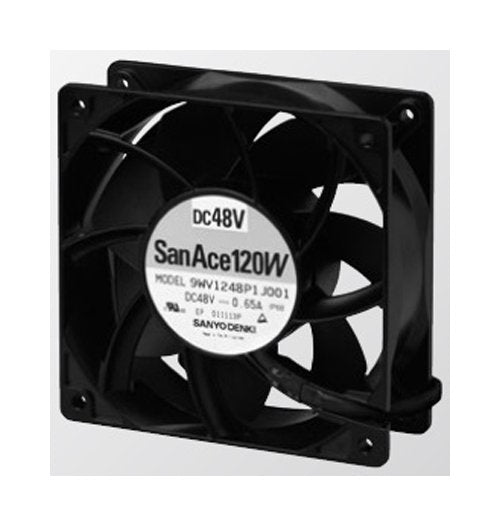

San Ace 120W Splash Proof Fan
San Ace 120W Splash Proof Fan
SKU:SAN-4dea15
San Ace 120W Splash Proof Fan - Reliable cooling for industrial & institutional use. Durable, high airflow & compliant with quality standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
San Ace 120W Splash Proof Fan
$49.99
Quantity: 1
Claim Your Seller Account
San Ace 120W Splash Proof Fan
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 120W Series Splash Proof Fan is a reliable cooling solution designed for industrial and institutional applications. With dimensions of 120 x 120 x 38 mm and a sturdy aluminum frame, this fan ensures durability and efficient heat dissipation. It features a UL94V-1 rated plastic impeller, making it resistant to fire hazards. Operating at a rated voltage of 12V with PWM control, this fan delivers a maximum airflow of 6.35 m³/min and a static pressure of up to 360 Pa. It meets stringent quality standards and offers a long lifespan of 60,000 hours at 60°C, ideal for demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Control Lead Wire Color
Brown
Specifications Dimensions
120 x 120 x 38 mm
Specifications Expected Life At 60c
60,000 hours
Specifications Frame Material
Aluminum
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
440 g
Specifications Maximum Air Flow
6.35 m³/min | 224.0 ft³/min
Specifications Maximum Rated Current
3 A
Specifications Maximum Rated Input Power
36 W
Specifications Maximum Rated Speed
6400 rpm
Specifications Maximum Sound Pressure Level
64 dBA
Specifications Maximum Static Pressure
360 Pa | 1.45 inH2O
Specifications Minimum Air Flow
1.49 m³/min | 52.6 ft³/min
Specifications Minimum Rated Current
0.2 A
Specifications Minimum Rated Input Power
2.4 W
Specifications Minimum Rated Speed
1500 rpm
Specifications Minimum Sound Pressure Level
33 dBA
Specifications Minimum Static Pressure
19.8 Pa | 0.08 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Note
Fan does not rotate when Pulse-Width Modulation (PWM) duty cycle is 0%.
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
10.2 to 13.8 V
Specifications Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Pulse Width Modulation Pwm Frequency
25 kHz
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
