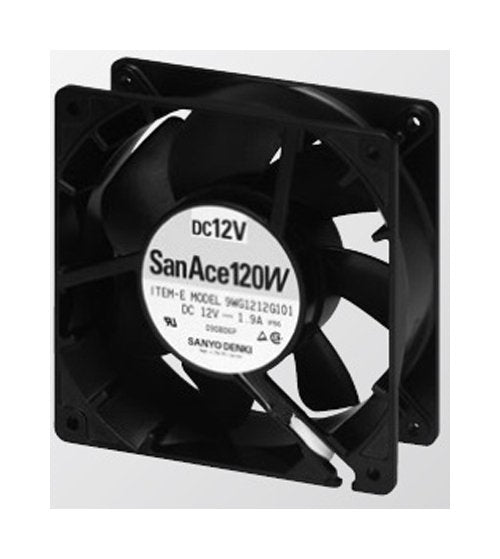

San Ace 120W Splash Proof Fan
San Ace 120W Splash Proof Fan
SKU:SAN-8f93a1
High-performance San Ace 120W Splash Proof Fan for industrial cooling needs. Durable construction for extended lifespan.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
San Ace 120W Splash Proof Fan
$49.99
Quantity: 1
Claim Your Seller Account
San Ace 120W Splash Proof Fan
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 120W Splash Proof Fan, model 9WG1248M101-E, is a reliable cooling solution designed for demanding environments. With a durable aluminum frame and UL94V-1 rated plastics impeller, this fan ensures high performance and safety. Operating at 48V with a rated speed of 1950 rpm, it delivers an airflow of 2.10 m³/min and has an expected life of 100,000 hours at 60ºC. Ideal for industrial and institutional applications requiring efficient cooling with low noise levels.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Air Flow
2.10 m³/min | 74 ft³/min
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black | Blue
Specifications Dimensions
120 x 120 x 38 mm
Specifications Expected Life At 60c
100000 hours
Specifications Frame Material
Aluminum
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
410 g
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
40.8 to 55.2 V
Specifications Rated Current
0.07 A
Specifications Rated Input Power
3.36 W
Specifications Rated Speed
1950 rpm
Specifications Rated Voltage
48 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
32 dBA
Specifications Static Pressure
39.6 Pa | 0.159 inH2O
