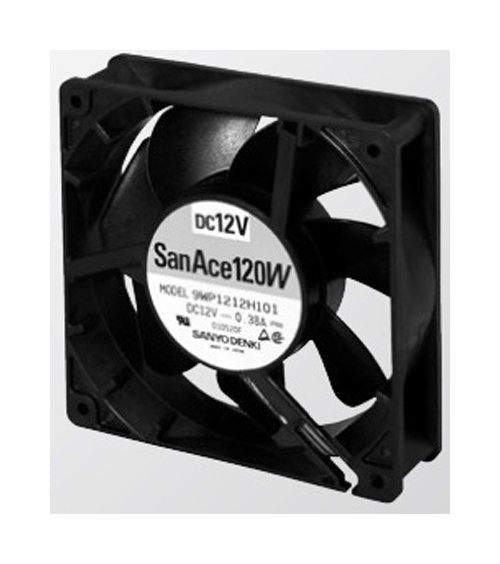

San Ace 120W Splash Proof Fan - 120 x 120 x 38 mm
San Ace 120W Splash Proof Fan - 120 x 120 x 38 mm
SKU:SAN-649df0
San Ace 120W Splash Proof Fan - Ultra-durable, high-performance 120x120x38 mm cooling fan for industrial and institutional use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 120W Splash Proof Fan - 120 x 120 x 38 mm
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 120W Splash Proof Fan - 120 x 120 x 38 mm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 120W Splash Proof Fan is a reliable cooling solution designed for industrial and institutional environments. With a durable plastic frame and UL94V-0 flammability rating, this fan ensures safety and longevity. Operating at 12V with a rated current of 0.38A, it delivers optimal airflow of 2.80 m³/min at 2600 rpm. Meeting stringent industry standards, including non-condensing storage temperatures from -30 to +70 ºC and an expected life of 40,000 hours at 60ºC, this fan is ideal for government and institutional procurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Air Flow
2.80 m³/min | 99 ft³/min
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Dimensions
120 x 120 x 38 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
360 g
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
7.0 to 13.8 V
Specifications Rated Current
0.38 A
Specifications Rated Input Power
4.56 W
Specifications Rated Speed
2600 rpm
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
39 dBA
Specifications Static Pressure
70.4 Pa | 0.283 inH2O
