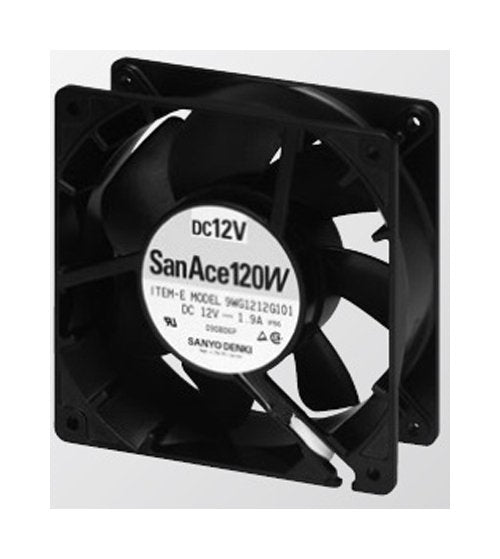

San Ace 120W Splash Proof Fan 120 x 120mm 12V
San Ace 120W Splash Proof Fan 120 x 120mm 12V
SKU:SAN-985ff5
High-performance San Ace 120W Splash Proof Fan with durable construction and quiet operation for effective cooling in versatile environments.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
San Ace 120W Splash Proof Fan 120 x 120mm 12V
$24.99
Quantity: 1
Claim Your Seller Account
San Ace 120W Splash Proof Fan 120 x 120mm 12V
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 120W Series Splash Proof Fan boasts a sturdy aluminum frame and UL94V-1 rated plastics impeller, ensuring durability. With a rated speed of 3,100 rpm, air flow of 3.3 m³/min, and 80000 hours lifespan, it provides reliable cooling while operating quietly at 46 dBA. Designed for a wide temperature range and easy installation, this fan is ideal for various applications.
Product Specifications
Specifications Air Flow
3.3 m³/min | 118 ft³/min
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black | Blue
Specifications Dimensions
120 x 120 x 38 mm
Specifications Expected Life At 60c
80000 hours
Specifications Frame Material
Aluminum
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
410 g
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
10.2 to 13.8 V
Specifications Rated Current
0.61 A
Specifications Rated Input Power
7.32 W
Specifications Rated Speed
3,100 rpm
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
46 dBA
Specifications Static Pressure
100 Pa | 0.402 inH2O
