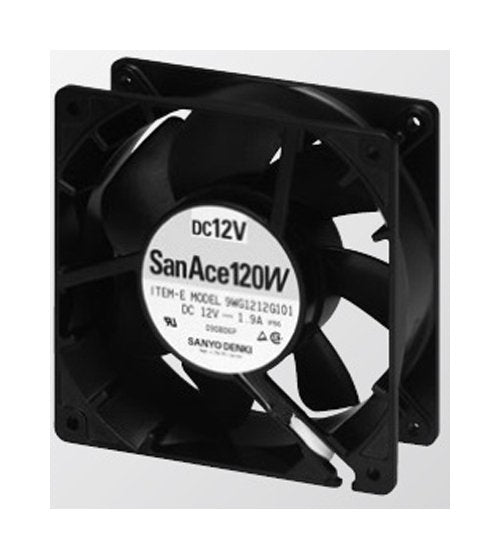

The San Ace 120W Series Splash Proof Fan, model 9WG1224M101-E, is a reliable cooling solution designed for demanding environments. With a robust aluminum frame and UL94V-1 rated plastic impeller, this fan ensures durability and safety. Operating within a wide voltage range of 14 to 27.6V, it delivers efficient airflow of 2.10 m³/min, while maintaining low noise levels at 32 dBA. This fan is ideal for industrial applications requiring long-lasting performance, with an expected life of 100,000 hours at 60°C.
Product Specifications
Specifications Air Flow
2.10 m³/min | 74 ft³/min
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black | Blue
Specifications Dimensions
120 x 120 x 38 mm
Specifications Expected Life At 60c
100000 hours
Specifications Frame Material
Aluminum
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
410 g
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
14 to 27.6 V
Specifications Rated Current
0.11 A
Specifications Rated Input Power
2.64 W
Specifications Rated Speed
1950 rpm
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
32 dBA
Specifications Static Pressure
39.6 Pa | 0.159 inH2O
