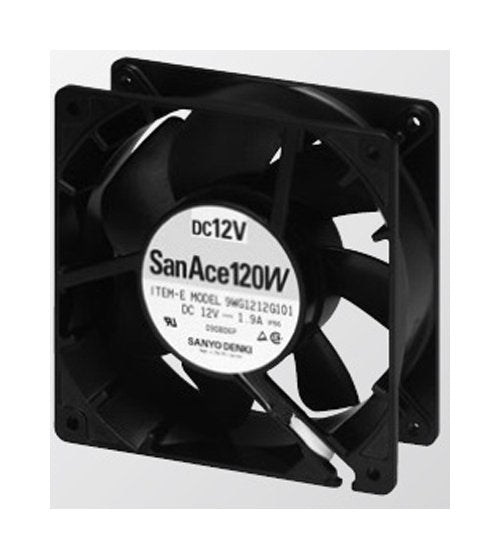

San Ace 120W Splash Proof Fan
San Ace 120W Splash Proof Fan
SKU:SAN-cdf28b
Reliable San Ace 120W Splash Proof Fan for efficient cooling in demanding environments.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 120W Splash Proof Fan
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 120W Splash Proof Fan
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 120W Splash Proof Fan is a reliable cooling solution designed for demanding environments. With a robust aluminum frame and UL94V-1 rated plastic impeller, it ensures durability and safety. Operating at 48V with a rated speed of 3100 rpm, this fan delivers efficient airflow of 3.34 m³/min while maintaining a low sound pressure level of 46 dBA. Ideal for various applications, it offers a long lifespan of 80,000 hours at 60ºC.
Product Specifications
Specifications Air Flow
3.34 m³/min | 118 ft³/min
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black | Blue
Specifications Dimensions
120 x 120 x 38 mm
Specifications Expected Life At 60c
80000 hours
Specifications Frame Material
Aluminum
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
410 g
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
40.8 to 55.2 V
Specifications Rated Current
0.17 A
Specifications Rated Input Power
8.16 W
Specifications Rated Speed
3,100 rpm
Specifications Rated Voltage
48 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
46 dBA
Specifications Static Pressure
100 Pa | 0.402 inH2O
