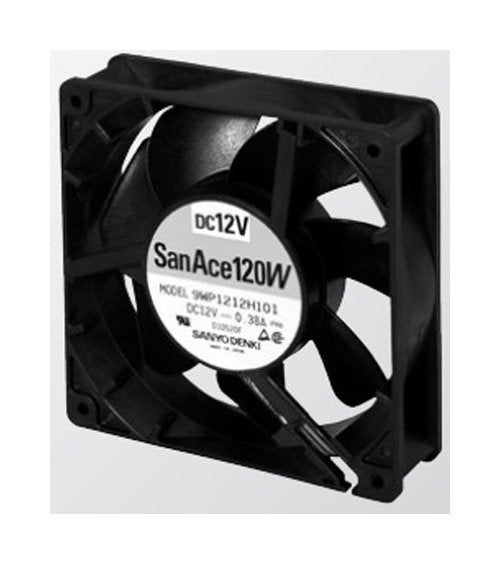

San Ace 120W Splash Proof Fan, 24V DC 120x120x38mm

Name: San Ace 120W Splash Proof Fan, 24V DC 120x120x38mm
Brand: Marsh Electronics, Inc.
SKU: SAN-8fe713
Price: 35.99 USD
Availability: OutOfStock

SKU:SAN-8fe713

Reliable San Ace 120W Splash Proof Fan for demanding environments. UL94V-0/1 compliant, 2600 rpm, 2.80 m³/min airflow, 39 dBA.

$35.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The San Ace 120W Series Splash Proof Fan is specifically designed for demanding environments requiring reliable cooling solutions. With a frame and impeller made from high-quality plastics meeting UL94V-0 and UL94V-1 flammability standards, this fan ensures safety and durability. Operating at 24V with a rated speed of 2600 rpm, it delivers a powerful airflow of 2.80 m³/min while maintaining a low sound level of 39 dBA. Ideal for a wide temperature range from -20 to +70 ºC, this fan guarantees longevity with an expected life of 40,000 hours at 60 ºC.

Product Specifications

Specifications Air Flow

2.80 mÂ³/min | 99 ftÂ³/min

Specifications Anode Lead Wire Color

Red

Specifications Cathode Lead Wire Color

Black

Specifications Dimensions

120 x 120 x 38 mm

Specifications Expected Life At 60c

40,000 hours

Specifications Frame Material

Plastics (Flammability: UL94V-0)

Specifications Impeller Material

Plastics (Flammability: UL94V-1)

Specifications Mass

360 g

Specifications Non Condensing Storage Temperature

-30 to +70 ÂºC

Specifications Operating Temperature Range

-20 to +70 ÂºC

Specifications Operating Voltage Range

14.0 to 27.6 V

Specifications Rated Current

0.22 A

Specifications Rated Input Power

5.28 W

Specifications Rated Speed

2600 rpm

Specifications Rated Voltage

24 V

Specifications Sensor Lead Wire Color

Yellow

Specifications Sound Pressure Level

39 dBA

Specifications Static Pressure

70.4 Pa | 0.283 inH2O

San Ace 120W Splash Proof Fan, 24V DC 120x120x38mm
