San Ace 120W Splash Proof Fan, 24V High Performance Cooling Fan
San Ace 120W Splash Proof Fan, 24V High Performance Cooling Fan
SKU:SAN-0c1bda
High-performance San Ace 120W Splash Proof Fan for reliable cooling in demanding environments.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
San Ace 120W Splash Proof Fan, 24V High Performance Cooling Fan
$39.99
Quantity: 1
Claim Your Seller Account
San Ace 120W Splash Proof Fan, 24V High Performance Cooling Fan
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

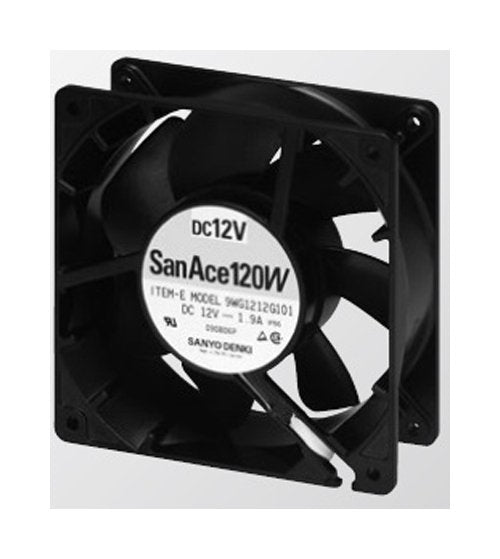

The San Ace 120W Series Splash Proof Fan is a high-quality cooling solution designed for demanding environments. With a durable aluminum frame and UL94V-1 rated plastic impeller, this fan ensures reliable performance. Operating at a rated speed of 3600 rpm, it delivers a robust airflow of 3.88 m³/min and a static pressure of 135 Pa. The fan meets stringent institutional procurement standards and has an expected life of 80000 hours, making it ideal for critical applications.
Product Specifications
Specifications Air Flow
3.88 m³/min | 137 ft³/min
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black | Blue
Specifications Dimensions
120 x 120 x 38 mm
Specifications Expected Life At 60c
80000 hours
Specifications Frame Material
Aluminum
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
410 g
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
20.4 to 27.6 V
Specifications Rated Current
0.50 A
Specifications Rated Input Power
12 W
Specifications Rated Speed
3600 rpm
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
49 dBA
Specifications Static Pressure
135 Pa | 0.542 inH2O
