San Ace 120W Splash Proof Fan - 48V DC
San Ace 120W Splash Proof Fan - 48V DC
SKU:SAN-70f564
High-performance San Ace 120W Splash Proof Fan - 48V DC. Durable aluminum frame, UL94V-1 rated plastics impeller. Ideal for demanding environments.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
San Ace 120W Splash Proof Fan - 48V DC
$39.99
Quantity: 1
Claim Your Seller Account
San Ace 120W Splash Proof Fan - 48V DC
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

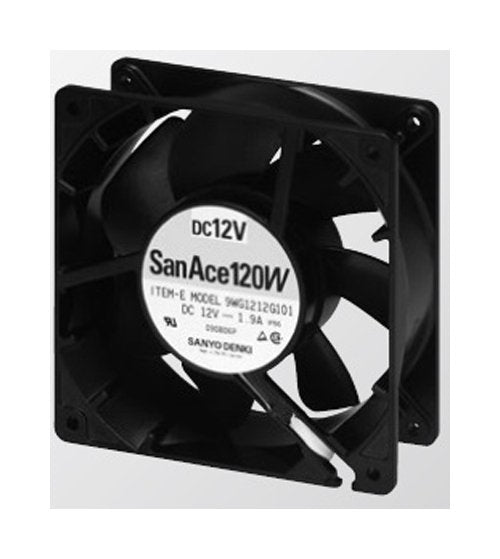

The San Ace 120W Series Splash Proof Fan is designed to meet the rigorous cooling requirements of both consumer and institutional applications. With dimensions of 120 x 120 x 38 mm, this fan features an aluminum frame and UL94V-1 rated plastics impeller, ensuring durability and safety. Operating at a rated voltage of 48V with a rated speed of 2280 rpm, this fan delivers an air flow of 2.45 m³/min and a static pressure of 54.2 Pa. It operates within a temperature range of -20 to +70 ºC and has an expected life of 100,000 hours at 60ºC. Ideal for demanding environments, this fan is reliable, efficient, and compliant with industry standards.
Product Specifications
Specifications Air Flow
2.45 m³/min | 87 ft³/min
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black | Blue
Specifications Dimensions
120 x 120 x 38 mm
Specifications Expected Life At 60c
100000 hours
Specifications Frame Material
Aluminum
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
410 g
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
40.8 to 55.2 V
Specifications Rated Current
0.09 A
Specifications Rated Input Power
4.32 W
Specifications Rated Speed
2280 rpm
Specifications Rated Voltage
48 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
36 dBA
Specifications Static Pressure
54.2 Pa | 0.218 inH2O
