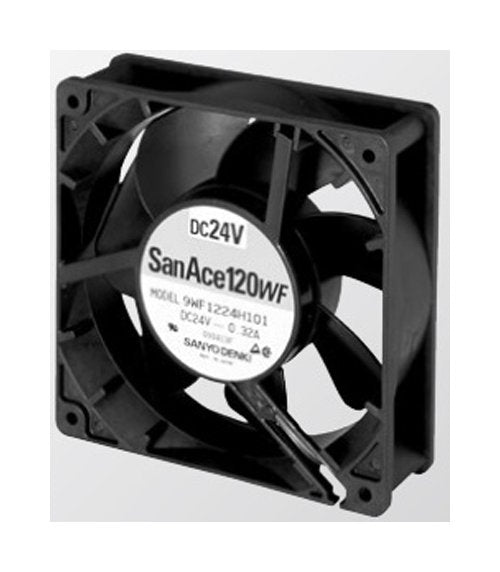

San Ace 120WF Oil Proof Fan - Institutional-Grade Cooling Solution

Name: San Ace 120WF Oil Proof Fan - Institutional-Grade Cooling Solution
Brand: Marsh Electronics, Inc.
SKU: SAN-1565a0
Price: 49.99 USD
Availability: OutOfStock

SKU:SAN-1565a0

Powerful, oil-proof industrial fan for precision cooling in demanding environments.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The San Ace 120WF Oil Proof Fan is a high-performance cooling solution designed for industrial and institutional settings. With dimensions of 120 x 120 x 38 mm and a lightweight mass of 355 g, this fan is constructed with UL94V-0 rated plastics for optimal safety. Operating at a rated voltage of 24 V and drawing a rated current of 0.32 A, this fan delivers a maximum air flow of 3.34 m³/min, ensuring efficient cooling in demanding environments. With a rated speed of 3,100 rpm and a sound pressure level of 46 dBA, the San Ace 120WF is reliable, durable, and ideal for use in a wide range of applications.

Product Specifications

Specifications Anode Lead Wire Color

Red

Specifications Cathode Lead Wire Color

Black

Specifications Dimensions

120 x 120 x 38 mm

Specifications Expected Life At 60c

40,000 hours

Specifications Frame Material

Plastics (Flammability: UL94V-0)

Specifications Impeller Material

Plastics (Flammability: UL94V-0)

Specifications Mass

355 g

Specifications Maximum Air Flow

3.34 mÂ³/min | 118 ftÂ³/min

Specifications Maximum Static Pressure

100 Pa | 0.40 inH2O

Specifications Non Condensing Storage Temperature

-30 to +70 ÂºC

Specifications Operating Temperature Range

-20 to +70 ÂºC

Specifications Operating Voltage Range

20.4 to 27.6 V

Specifications Rated Current

0.32 A

Specifications Rated Input Power

7.68 W

Specifications Rated Speed

3,100 rpm

Specifications Rated Voltage

24 V

Specifications Sensor Lead Wire Color

Yellow

Specifications Sound Pressure Level

46 dBA
