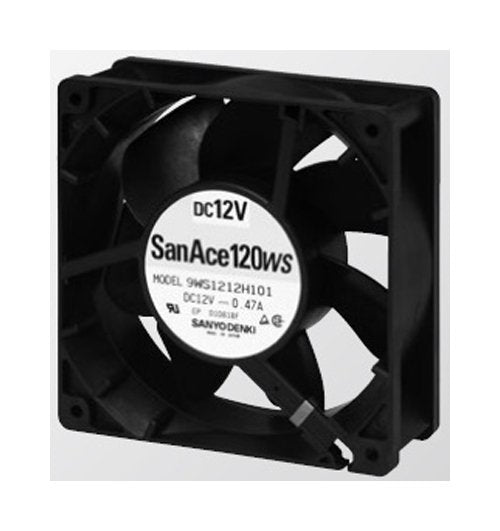

San Ace 120WS Series Splash Proof Fan - 9WS1248M101

Name: San Ace 120WS Series Splash Proof Fan - 9WS1248M101
Brand: Marsh Electronics, Inc.
SKU: SAN-8ce2ef
Price: 24.99 USD
Availability: OutOfStock

SKU:SAN-8ce2ef

Enhance cooling with the San Ace 120WS Splash Proof Fan - 120x120x38mm, UL94V-0 Frame, 48V, 32dBA, 2.20m³/min airflow. Ideal for demanding environments.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The San Ace 120WS Series Splash Proof Fan in 120 x 120 x 38 mm dimensions is a reliable cooling solution designed for demanding environments. With a UL94V-0 frame and UL94V-1 impeller, this fan ensures safety and durability. Operating at a rated voltage of 48 V and featuring a sound pressure level of 32 dBA, it delivers efficient cooling with a maximum airflow of 2.20 m³/min. Expect longevity with an expected life of 40,000 hours, making it ideal for both consumer and institutional use.

Product Specifications

Specifications Anode Lead Wire Color

Red

Specifications Cathode Lead Wire Color

Black | Blue

Specifications Dimensions

120 x 120 x 38 mm

Specifications Expected Life At 60c

40,000 hours

Specifications Frame Material

Plastics (Flammability: UL94V-0)

Specifications Impeller Material

Plastics (Flammability: UL94V-1)

Specifications Mass

260 g

Specifications Maximum Air Flow

2.20 mÂ³/min | 77.7 ftÂ³/min

Specifications Maximum Static Pressure

42.14 Pa | 0.169 inH2O

Specifications Non Condensing Storage Temperature

-30 to +70 ÂºC

Specifications Operating Temperature Range

-20 to +70 ÂºC

Specifications Operating Voltage Range

40.8 to 55.2 V

Specifications Rated Current

0.07 A

Specifications Rated Input Power

3.36 W

Specifications Rated Speed

1950 rpm

Specifications Rated Voltage

48 V

Specifications Sensor Lead Wire Color

Yellow

Specifications Sound Pressure Level

32 dBA

San Ace 120WS Series Splash Proof Fan - 9WS1248M101
