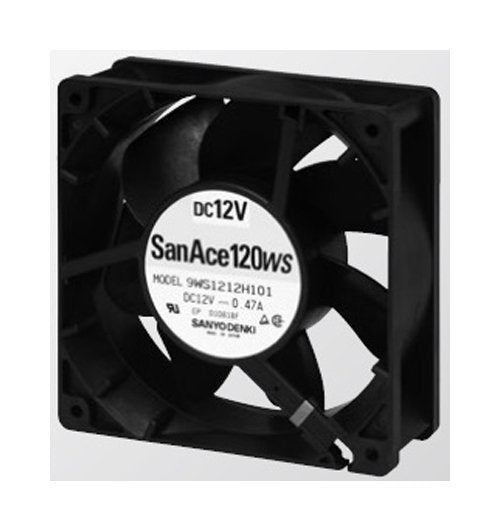

The San Ace 120WS Series Splash Proof Fan delivers powerful and reliable cooling performance. With dimensions of 120 x 120 x 38 mm and a lightweight frame made of UL94V-0 rated plastics, it ensures robustness and safety. Operating at a rated voltage of 24 V with a wide voltage range of 12 to 26.4 V, this fan offers optimal airflow at 2600 rpm while maintaining a low sound level of 39 dBA. Its durable design, meeting industry standards, guarantees longevity with an expected life of 40,000 hours at 60°C.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black | Blue
Specifications Dimensions
120 x 120 x 38 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
260 g
Specifications Maximum Air Flow
2.9 m³/min | 102.4 ft³/min
Specifications Maximum Static Pressure
67.62 Pa | 0.272 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to 60 ºC
Specifications Operating Voltage Range
12 to 26.4 V
Specifications Rated Current
0.23 A
Specifications Rated Input Power
5.52 W
Specifications Rated Speed
2600 rpm
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
39 dBA
