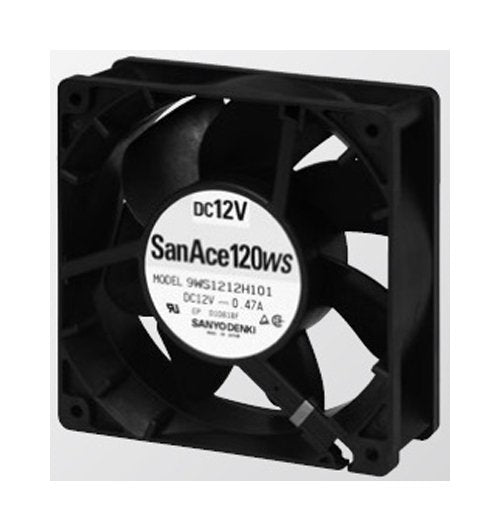

San Ace 120WS Splash Proof Fan
San Ace 120WS Splash Proof Fan
SKU:SAN-f5b253
Reliable San Ace 120WS Splash Proof Fan w/ 2.9m³/min airflow, 39dBA sound level & UL94V-0 flammability rating
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
San Ace 120WS Splash Proof Fan
$24.99
Quantity: 1
Claim Your Seller Account
San Ace 120WS Splash Proof Fan
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 120WS Splash Proof Fan is a durable cooling solution designed for demanding environments. With dimensions of 120 x 120 x 38 mm and a robust plastic frame material with UL94V-0 flammability rating, this fan ensures reliable performance. Operating at a rated voltage of 48 V and a rated speed of 2600 rpm, it delivers a maximum airflow of 2.9 m³/min. The fan meets stringent quality standards, including a sound pressure level of 39 dBA and an expected life of 40,000 hours at 60°C.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black | Blue
Specifications Dimensions
120 x 120 x 38 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
260 g
Specifications Maximum Air Flow
2.9 m³/min | 102.4 ft³/min
Specifications Maximum Static Pressure
67.62 Pa | 0.272 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to 60 ºC
Specifications Operating Voltage Range
40.8 to 52.8 V
Specifications Rated Current
0.13 A
Specifications Rated Input Power
6.24 W
Specifications Rated Speed
2600 rpm
Specifications Rated Voltage
48 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
39 dBA
