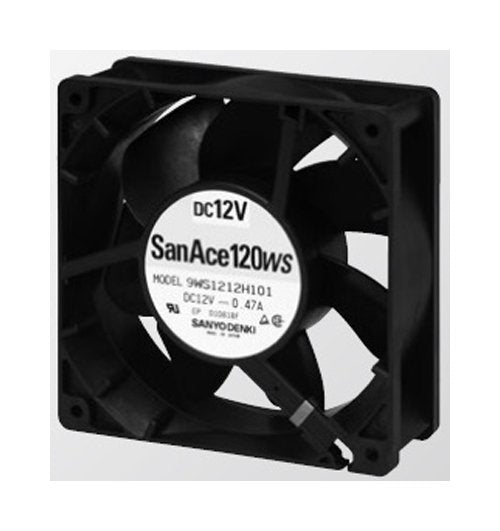

San Ace 120WS Splash Proof Fan
San Ace 120WS Splash Proof Fan
SKU:SAN-ab4b5e
Reliable San Ace 120WS Splash Proof Fan for efficient cooling in institutional settings. Featuring durable plastic construction and extended 40,000-hour lifespan.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 120WS Splash Proof Fan
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 120WS Splash Proof Fan
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 120WS Splash Proof Fan is a reliable cooling solution, designed with dimensions of 120 x 120 x 38 mm and a lightweight mass of 260g. Featuring a plastic frame and impeller with flammability ratings of UL94V-0 and UL94V-1 respectively, this fan ensures safety and durability. With a rated voltage of 12V, operating voltage range of 6 to 13.8V, and a rated speed of 1950 rpm, it delivers efficient cooling with a maximum air flow of 2.20 m³/min and a maximum static pressure of 42.14 Pa. Operating silently at 32 dBA, this fan has an extended lifespan of 40,000 hours at 60ºC, making it ideal for institutional and government applications.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black | Blue
Specifications Dimensions
120 x 120 x 38 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
260 g
Specifications Maximum Air Flow
2.20 m³/min | 77.7 ft³/min
Specifications Maximum Static Pressure
42.14 Pa | 0.169 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
6 to 13.8 V
Specifications Rated Current
0.23 A
Specifications Rated Input Power
2.76 W
Specifications Rated Speed
1950 rpm
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
32 dBA
