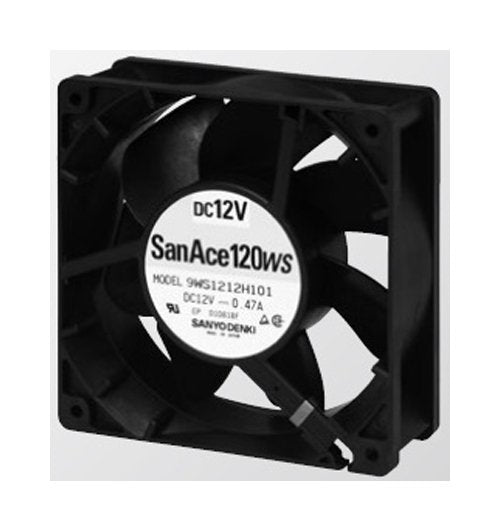

San Ace 120WS Splash Proof Fan - 9WS1212H101
San Ace 120WS Splash Proof Fan - 9WS1212H101
SKU:SAN-bb071e
Reliable San Ace 120WS Splash Proof Fan, ideal for efficient cooling in any environment.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 120WS Splash Proof Fan - 9WS1212H101
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 120WS Splash Proof Fan - 9WS1212H101
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 120WS Splash Proof Fan is a high-performance cooling solution designed for reliability and durability. With dimensions of 120 x 120 x 38 mm and a rated voltage of 12V, this fan operates within a temperature range of -20 to 60 ºC. Its flammability-rated plastics frame and impeller ensure safety, meeting UL94V-0 and UL94V-1 standards. The fan delivers a maximum air flow of 2.9 m³/min, achieving efficient cooling while maintaining a low sound pressure level of 39 dBA. Ideal for both consumer and institutional users requiring a dependable cooling solution.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black | Blue
Specifications Dimensions
120 x 120 x 38 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
260 g
Specifications Maximum Air Flow
2.9 m³/min | 102.4 ft³/min
Specifications Maximum Static Pressure
67.62 Pa | 0.272 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to 60 ºC
Specifications Operating Voltage Range
6 to 13.2 V
Specifications Rated Current
0.47 A
Specifications Rated Input Power
5.64 W
Specifications Rated Speed
2600 rpm
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
39 dBA
