San Ace 133W Series Centrifugal Fan
San Ace 133W Series Centrifugal Fan
SKU:SAN-362f86
High-performance San Ace 133W Centrifugal Fan with 4150 rpm speed and 6.39 m³/min air flow for reliable cooling in demanding environments.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
San Ace 133W Series Centrifugal Fan
$49.99
Quantity: 1
Claim Your Seller Account
San Ace 133W Series Centrifugal Fan
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

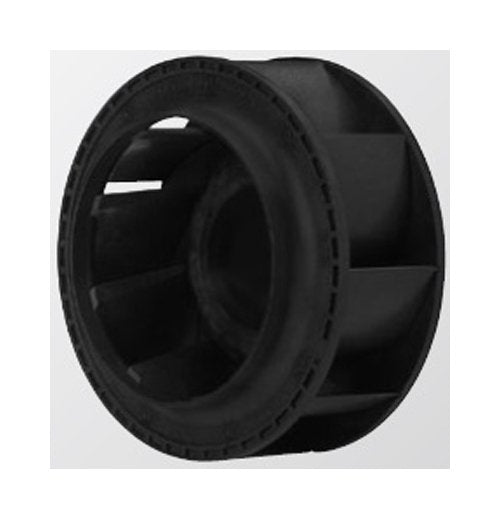

The San Ace 133W Series Splash Proof Centrifugal Fan is a high-performance fan designed for reliable cooling in demanding environments. With dimensions of 133 x 91 mm and a durable aluminum frame coated in black, this fan is built to last. The fan features a UL94V-0 rated plastics impeller, making it flame-retardant and safe for various applications. Operating at 24 V with a rated speed of 4150 rpm, it delivers a maximum air flow of 6.39 m³/min and a sound pressure level of 61 dBA. With an expected life of 40,000 hours at 60ºC, this fan is a dependable choice for cooling systems that require efficiency and longevity. Suitable for both consumer and institutional buyers seeking performance and compliance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Dimensions
133 x 91 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Aluminum (Black coating)
Specifications Impeller Material
Plastics (Flammability: UL94V-0)
Specifications Lead Wire Color
Black | Brown | Red | Yellow
Specifications Mass
720 g
Specifications Maximum Air Flow
6.39 m³/min | 225 ft³/min
Specifications Maximum Static Pressure
395 Pa | 1.59 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Note
Fan does not rotate when Pulse-Width Modulation (PWM) duty cycle is 0%.
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
20.4 to 27.6 V
Specifications Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Pulse Width Modulation Pwm Frequency
25 kHz
Specifications Rated Current
1.2 A
Specifications Rated Input Power
28.8 W
Specifications Rated Speed
4150 rpm
Specifications Rated Voltage
24 V
Specifications Sound Pressure Level
61 dBA
