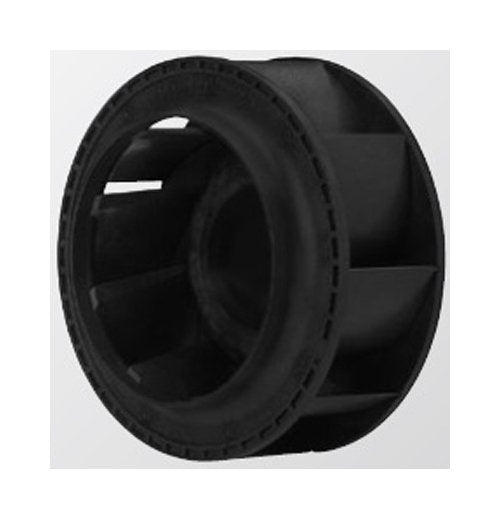

The San Ace 133W Series Splash Proof Centrifugal Fan is meticulously crafted for superior performance and reliability in demanding environments. With a durable aluminum frame and UL94V-0 compliant plastic impeller, this fan offers exceptional resistance to splashes and a wide operating temperature range (-30 to +70°C). Powered by a 48V rated voltage and featuring a rated speed of 4150 rpm, it delivers a maximum airflow of 6.39 m³/min, while maintaining a low sound pressure level of 61 dBA. Ideal for applications requiring efficient cooling and long-lasting operation, the San Ace 133W is designed to meet the rigorous standards of government and institutional procurement.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Dimensions
133 x 91 mm
Specifications Expected Life At 40c
70,000 hours
Specifications Frame Material
Aluminum (Black coating)
Specifications Impeller Material
Plastics (Flammability: UL94V-0)
Specifications Lead Wire Color
Black | Brown | Red | Yellow
Specifications Mass
720 g
Specifications Maximum Air Flow
6.39 m³/min | 225 ft³/min
Specifications Maximum Static Pressure
395 Pa | 1.59 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Note
Fan does not rotate when Pulse-Width Modulation (PWM) duty cycle is 0%.
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
36 to 60 V
Specifications Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Pulse Width Modulation Pwm Frequency
25 kHz
Specifications Rated Current
0.55 A
Specifications Rated Input Power
26.4 W
Specifications Rated Speed
4150 rpm
Specifications Rated Voltage
48 V
Specifications Sound Pressure Level
61 dBA
