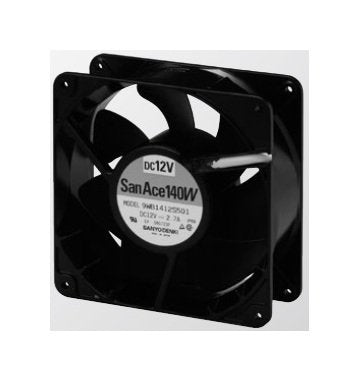

San Ace 140W Series Splash Proof Fan - 140 x 140 x 51 mm

Name: San Ace 140W Series Splash Proof Fan - 140 x 140 x 51 mm
Brand: Marsh Electronics, Inc.
SKU: SAN-05b8d2
Price: 45.99 USD
Availability: OutOfStock

SKU:SAN-05b8d2

Enhance system cooling with the San Ace 140W Series Splash Proof Fan, designed for durability and high performance.

$45.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The San Ace 140W Series Splash Proof Fan is a top-of-the-line cooling solution designed for industrial and commercial applications. With a durable aluminum frame and UL94V-1 compliant plastic impeller, this fan ensures reliable performance in challenging environments. Operating at a rated voltage of 24V and a maximum speed of 2050 rpm, it delivers a maximum airflow of 3.9 m³/min. Rated for an expected life of 100,000 hours at 60°C, this fan is a long-lasting and efficient choice for cooling systems.

Product Specifications

Specifications Anode Lead Wire Color

Red

Specifications Cathode Lead Wire Color

Black | Blue

Specifications Dimensions

140 x 140 x 51 mm

Specifications Expected Life At 60c

100000 hours

Specifications Frame Material

Aluminum

Specifications Impeller Material

Plastics (Flammability: UL94V-1)

Specifications Mass

700 g

Specifications Maximum Air Flow

3.9 mÂ³/min | 138 ftÂ³/min

Specifications Maximum Static Pressure

63 Pa | 0.25 inH2O

Specifications Non Condensing Storage Temperature

-30 to +70 ÂºC

Specifications Operating Temperature Range

-20 to +70 ÂºC

Specifications Operating Voltage Range

20.4 to 27.6 V

Specifications Rated Current

0.22 A

Specifications Rated Input Power

5.28 W

Specifications Rated Speed

2050 rpm

Specifications Rated Voltage

24 V

Specifications Sensor Lead Wire Color

Yellow

Specifications Sound Pressure Level

39 dBA

San Ace 140W Series Splash Proof Fan - 140 x 140 x 51 mm
