San Ace 140W Series Splash Proof Fan - 140 x 140 x 51 mm, 12V, 5.52W
San Ace 140W Series Splash Proof Fan - 140 x 140 x 51 mm, 12V, 5.52W
SKU:SAN-7d145c
Reliable San Ace 140W Splash Proof Fan for effective cooling in diverse environments.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 140W Series Splash Proof Fan - 140 x 140 x 51 mm, 12V, 5.52W
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 140W Series Splash Proof Fan - 140 x 140 x 51 mm, 12V, 5.52W
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

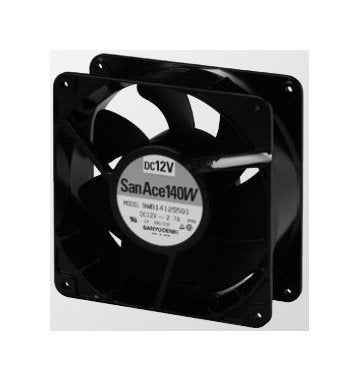

The San Ace 140W Series Splash Proof Fan is a durable and efficient cooling solution suitable for both consumer and institutional needs. With a sturdy aluminum frame and UL94V-1 rated plastics impeller, this fan ensures reliable performance in various environmental conditions. Operating within a temperature range of -20 to +70 ºC, it offers a rated speed of 2050 rpm, maximum airflow of 3.9 m³/min, and a maximum static pressure of 63 Pa. With a sound pressure level of 39 dBA and an expected life of 100,000 hours at 60ºC, this fan is designed for long-lasting cooling performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black | Blue
Specifications Dimensions
140 x 140 x 51 mm
Specifications Expected Life At 60c
100000 hours
Specifications Frame Material
Aluminum
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
700 g
Specifications Maximum Air Flow
3.9 m³/min | 138 ft³/min
Specifications Maximum Static Pressure
63 Pa | 0.25 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
10.2 to 13.8 V
Specifications Rated Current
0.46 A
Specifications Rated Input Power
5.52 W
Specifications Rated Speed
2050 rpm
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
39 dBA
