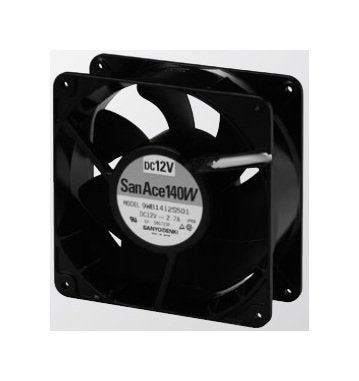

The San Ace 140W Series Splash Proof Fan is a top-tier industrial cooling solution designed to meet the rigorous demands of both consumer and institutional settings. With dimensions of 140 x 140 x 51 mm and a sturdy aluminum frame, this fan delivers optimal airflow with a maximum static pressure of 130 Pa. Operating within a wide temperature range of -20 to +70 ºC, it offers reliability and longevity with an expected life of 100,000 hours at 60 ºC. This fan is UL94V-1 flammability rated, ensuring safety and compliance with industry standards.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black | Blue
Specifications Dimensions
140 x 140 x 51 mm
Specifications Expected Life At 60c
100000 hours
Specifications Frame Material
Aluminum
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
700 g
Specifications Maximum Air Flow
5.9 m³/min | 208.5 ft³/min
Specifications Maximum Static Pressure
130 Pa | 0.52 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
10.2 to 13.8 V
Specifications Rated Current
1.25 A
Specifications Rated Input Power
15 W
Specifications Rated Speed
3,100 rpm
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
49 dBA
