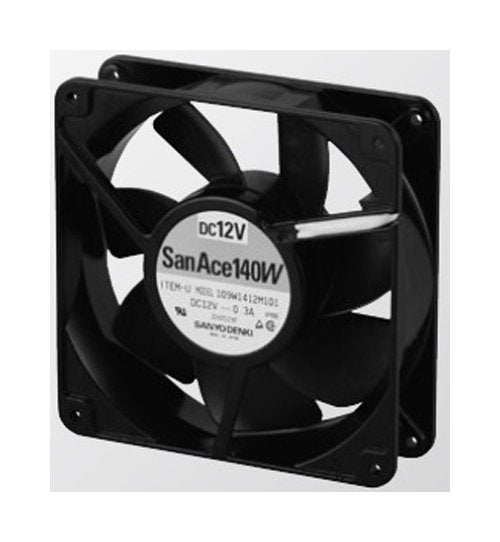

San Ace 140W Series Splash Proof Fan - Model 109W1412M101-U
San Ace 140W Series Splash Proof Fan - Model 109W1412M101-U
SKU:SAN-a2d11a
San Ace 140W Series Splash Proof Fan - High-performance cooling, durable aluminum frame, UL94V-1 rated plastic impeller, easy installation. Max air flow: 3.30 m³/min.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 140W Series Splash Proof Fan - Model 109W1412M101-U
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 140W Series Splash Proof Fan - Model 109W1412M101-U
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 140W Series Splash Proof Fan, model 109W1412M101-U, is a high-performance cooling solution suitable for various applications. With dimensions of 140 x 140 x 38 mm and a sturdy aluminum frame, this fan ensures durability and efficient heat dissipation. Its UL94V-1 rated plastic impeller guarantees safety, while the red anode lead wire and black/blue cathode lead wires make installation hassle-free. Operating within a voltage range of 10.2 to 13.8 V and producing a maximum air flow of 3.30 m³/min, this fan offers reliable cooling performance with a sound pressure level of 38 dBA.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black | Blue
Specifications Dimensions
140 x 140 x 38 mm
Specifications Expected Life At 60c
100000 hours
Specifications Frame Material
Aluminum
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
650 g
Specifications Maximum Air Flow
3.30 m³/min | 117 ft³/min
Specifications Maximum Static Pressure
52 Pa | 0.209 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
10.2 to 13.8 V
Specifications Rated Current
0.3 A
Specifications Rated Input Power
3.6 W
Specifications Rated Speed
1900 rpm
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
38 dBA
