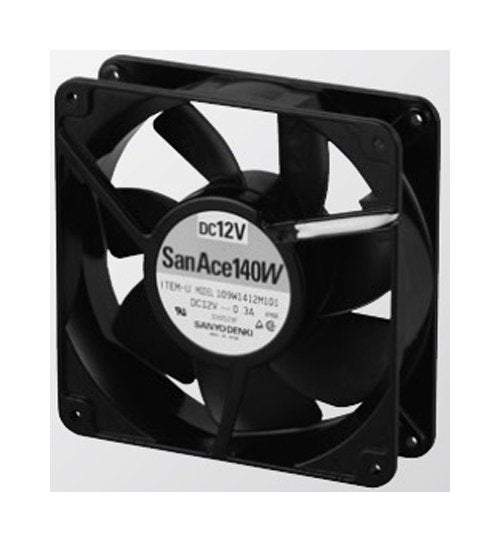

San Ace 140W Splash Proof Fan
San Ace 140W Splash Proof Fan
SKU:SAN-99809b
Reliable San Ace 140W Series Splash Proof Fan with durable construction and high performance for demanding applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
San Ace 140W Splash Proof Fan
$49.99
Quantity: 1
Claim Your Seller Account
San Ace 140W Splash Proof Fan
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 140W Series Splash Proof Fan is expertly engineered for reliable performance in demanding environments. With a robust aluminum frame and UL94V-1 rated plastics, this fan ensures durability and safety. Operating within a voltage range of 10.2 to 13.8V, it delivers a maximum air flow of 4.5 m³/min and a sound pressure level of 46 dBA. Designed to meet stringent institutional procurement standards, this fan is ideal for government facilities and commercial applications requiring high-quality ventilation solutions.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black | Blue
Specifications Dimensions
140 x 140 x 38 mm
Specifications Expected Life At 60c
100000 hours
Specifications Frame Material
Aluminum
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
650 g
Specifications Maximum Air Flow
4.5 m³/min | 159 ft³/min
Specifications Maximum Static Pressure
98 Pa | 0.394 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
10.2 to 13.8 V
Specifications Rated Current
0.73 A
Specifications Rated Input Power
8.76 W
Specifications Rated Speed
2600 rpm
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
46 dBA
