San Ace 140W Splash Proof Fan
San Ace 140W Splash Proof Fan
SKU:SAN-e5a7d7
Reliable San Ace 140W Splash Proof Fan with UL94V-1 rated plastic impeller, 4200 rpm speed, and 8.1 m³/min airflow for efficient cooling.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
San Ace 140W Splash Proof Fan
$45.99
Quantity: 1
Claim Your Seller Account
San Ace 140W Splash Proof Fan
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

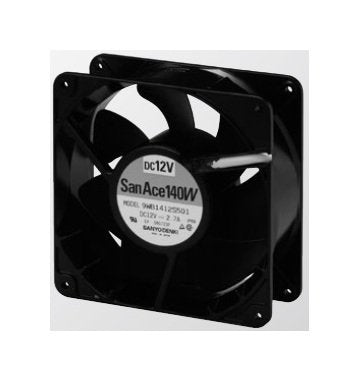

The San Ace 140W Splash Proof Fan is a durable and reliable cooling solution designed for demanding environments. With dimensions of 140 x 140 x 51 mm and a lightweight aluminum frame, this fan features a UL94V-1 rated plastic impeller for enhanced safety. Operating at a rated voltage of 12V with a rated speed of 4200 rpm, it delivers a maximum airflow of 8.1 m³/min to efficiently cool systems. This fan ensures quiet operation at 57 dBA, with an expected lifespan of 60,000 hours at 60°C, making it ideal for industrial and institutional applications.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black | Blue
Specifications Dimensions
140 x 140 x 51 mm
Specifications Expected Life At 60c
60,000 hours
Specifications Frame Material
Aluminum
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
700 g
Specifications Maximum Air Flow
8.1 m³/min | 286.2 ft³/min
Specifications Maximum Static Pressure
240 Pa | 0.96 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
10.2 to 13.8 V
Specifications Rated Current
2.7 A
Specifications Rated Input Power
32.4 W
Specifications Rated Speed
4200 rpm
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
57 dBA
