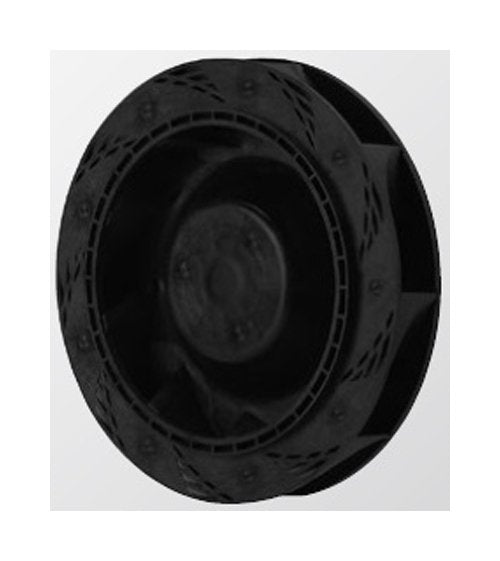

San Ace 150W Splash Proof Centrifugal Fans
San Ace 150W Splash Proof Centrifugal Fans
SKU:SAN-384997
Reliable San Ace 150W fans for superior cooling in demanding conditions. Durable, high-performance with long lifespan.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
San Ace 150W Splash Proof Centrifugal Fans
$45.99
Quantity: 1
Claim Your Seller Account
San Ace 150W Splash Proof Centrifugal Fans
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 150W Series Splash Proof Centrifugal Fans are engineered for superior performance in challenging environments. With a durable aluminum frame, UL94V-0 rated plastic impeller, and a wide operating temperature range, these fans deliver reliable cooling with a rated speed of 3800 rpm and a maximum airflow of 3.83 m³/min. Designed for longevity, they offer an expected life of up to 70,000 hours at 40°C. Ideal for both consumer and institutional use, these fans ensure efficient cooling with low noise levels and high static pressure.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Control Lead Wire Color
Brown
Specifications Dimensions
150 x 35 mm
Specifications Expected Life At 40c
70,000 hours
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Aluminum (Black coating)
Specifications Impeller Material
Plastics (Flammability: UL94V-0)
Specifications Mass
330 g
Specifications Maximum Air Flow
3.83 m³/min | 135 ft³/min
Specifications Maximum Static Pressure
390 Pa | 1.57 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Note
Fan does not rotate when Pulse-Width Modulation (PWM) duty cycle is 0%.
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
36.0 to 55.2 V
Specifications Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Pulse Width Modulation Pwm Frequency
25 kHz
Specifications Rated Current
0.32 A
Specifications Rated Input Power
15.4 W
Specifications Rated Speed
3,800 rpm
Specifications Rated Voltage
48 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
59 dBA
