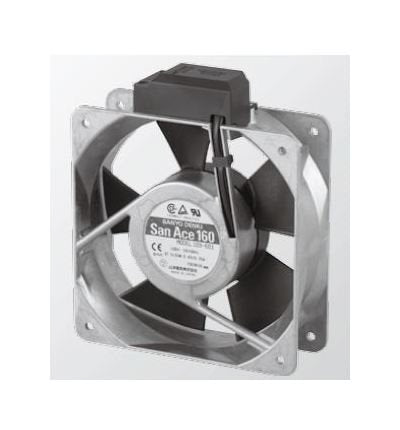

The 109-603 San Ace 160 Series AC Fan is a high-performance cooling solution ideal for demanding industrial and institutional applications. With precise dimensions of 160×160×51 mm and a durable aluminum frame, this fan ensures reliable and efficient cooling. The impeller, made of UL94V-1 rated plastics, enhances safety and performance. Operating at a rated voltage of 230V, this fan offers a maximum air flow of 8.5 m³/min and a maximum static pressure of 166.6 Pa. Designed for longevity, it has an expected life of 25,000 hours at 60°C, making it a cost-effective and reliable choice for critical cooling needs.
Product Specifications
Specifications Current
0.21/0.16 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute

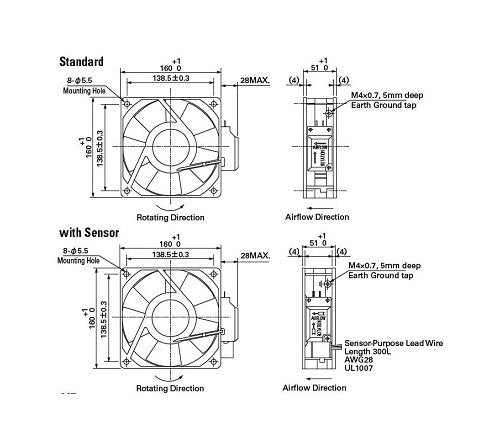

Specifications Dimensions
160Ã160Ã51
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
37.5/33 W
Specifications Locked Rotor Current
0.32/0.31 A
Specifications Mass
1100 g
Specifications Maximum Air Flow
7.2/8.5 m³/min | 254.4/300.4 ft³/min
Specifications Maximum Static Pressure
156.8/166.6 Pa | 0.630/0.669 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,850/3,350 rpm
Specifications Rated Voltage
230 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
28/30 dBA
