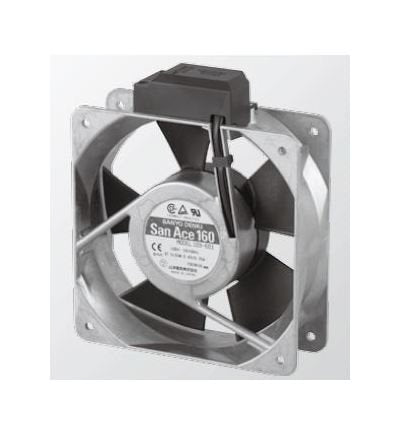

San Ace 160 Series AC Fan - High Performance Cooling Solution

San Ace 160 Series AC Fan - High Performance Cooling Solution

SAN-0fd189

San Ace 160 Series AC Fan - High-performance cooling with UL94V-1 plastics & aluminum frame.

$69.99
$69.99
Sale

Initiate Order

San Ace 160 Series AC Fan - High Performance Cooling Solution

San Ace 160 Series AC Fan - High Performance Cooling Solution

$69.99

Quantity: 1

Claim Your Seller Account

San Ace 160 Series AC Fan - High Performance Cooling Solution

San Ace 160 Series AC Fan - High Performance Cooling Solution

$69.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The San Ace 160 Series AC Fan is a powerful cooling solution designed for optimal performance and durability. With dimensions of 160×160×51, aluminum frame material, and UL94V-1 rated plastics impeller, this fan ensures efficient heat dissipation. Operating at 200V with a rated speed of 2,850/3,350 rpm, it delivers a maximum airflow of 7.2/8.5 m³/min. Featuring dielectric strength compliance up to 1,500VAC, this fan is reliable and safe for industrial and institutional use.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Specifications Current
0.23/0.18 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute

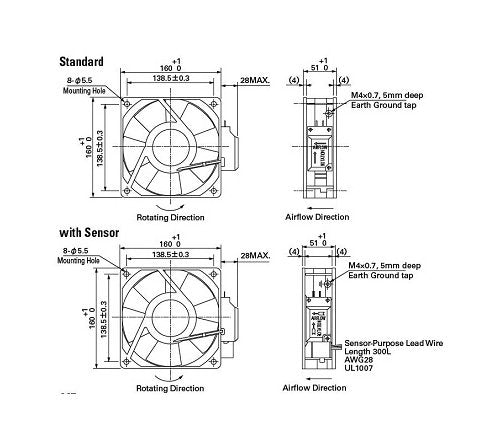

Specifications Dimensions
160×160×51
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
37.5/33 W
Specifications Locked Rotor Current
0.36/0.35 A
Specifications Mass
1100 g
Specifications Maximum Air Flow
7.2/8.5 m³/min | 254.4/300.4 ft³/min
Specifications Maximum Static Pressure
156.8/166.6 Pa | 0.630/0.669 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,850/3,350 rpm
Specifications Rated Voltage
200 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
28/30 dBA
