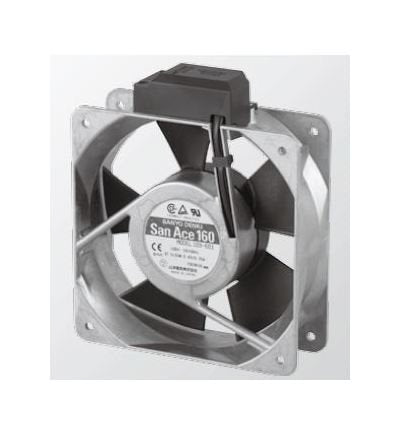

San Ace 160 Series AC Fan, Model 109-604
San Ace 160 Series AC Fan, Model 109-604
SKU:SAN-46c34b
Optimize air circulation efficiently with San Ace 160 Series AC Fan 109-604. Durable design, enhanced safety features, and long lifespan for reliable performance.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
San Ace 160 Series AC Fan, Model 109-604
$89.99
Quantity: 1
Claim Your Seller Account
San Ace 160 Series AC Fan, Model 109-604
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance air circulation efficiency with the San Ace 160 Series AC Fan Model 109-604. This fan features a durable aluminum frame and UL94V-1 rated plastic impeller offering high reliability and safety. With a dielectric strength of 1,500VAC, sensor wiring for precise monitoring, and operating at a range of -30 to +60ºC, this fan ensures optimal performance and longevity in various environments. Rated for 25,000 hours lifespan, it delivers up to 8.5 m³/min air flow at 300.4 ft³/min, meeting stringent industry standards for quality and performance.
Product Specifications
Specifications Current
0.39/0.31 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute

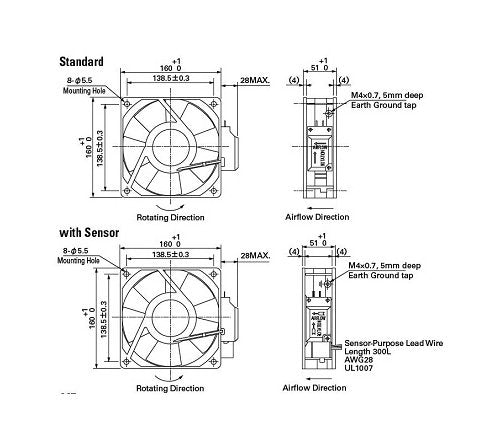

Specifications Dimensions
160Ã160Ã51
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
37.5/33 W
Specifications Locked Rotor Current
0.62/0.61 A
Specifications Mass
1100 g
Specifications Maximum Air Flow
7.2/8.5 m³/min | 254.4/300.4 ft³/min
Specifications Maximum Static Pressure
156.8/166.6 Pa | 0.630/0.669 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,850/3,350 rpm
Specifications Rated Voltage
115 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
28/30 dBA
