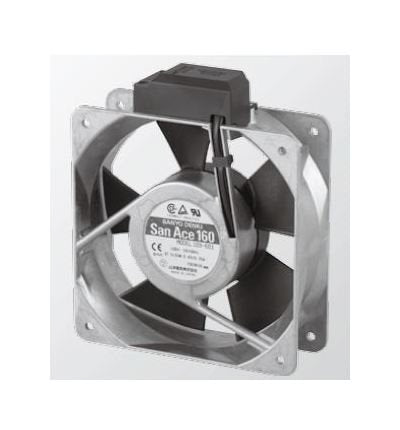

San Ace 160 Series AC Fan with Sensor
San Ace 160 Series AC Fan with Sensor
SKU:SAN-b7b937
High-performance 109-643 San Ace 160 Series AC Fan with Sensor for industrial cooling applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
San Ace 160 Series AC Fan with Sensor
$89.99
Quantity: 1
Claim Your Seller Account
San Ace 160 Series AC Fan with Sensor
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 109-643 San Ace 160 Series AC Fan with Sensor is a high-performance cooling solution designed for industrial and institutional applications. With dimensions of 160×160×51 and a durable aluminum frame, this fan ensures reliable operation in demanding environments. It features a UL94V-1 rated plastic impeller, dielectric strength of up to 1,500VAC, and operates within a temperature range of -10 to +60 °C. With a rated voltage of 230V and a maximum air flow of 8.5 m³/min, this fan delivers efficient cooling while maintaining low sound levels, making it ideal for a wide range of settings.
Product Specifications
Specifications Current
0.21/0.16 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute

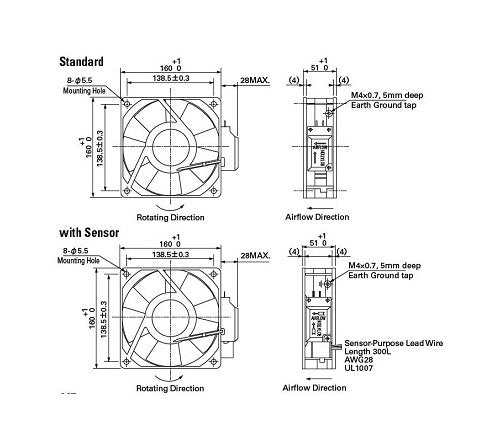

Specifications Dimensions
160Ã160Ã51
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
37.5/33 W
Specifications Locked Rotor Current
0.32/0.31 A
Specifications Mass
1100 g
Specifications Maximum Air Flow
7.2/8.5 m³/min | 254.4/300.4 ft³/min
Specifications Maximum Static Pressure
156.8/166.6 Pa | 0.630/0.669 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-10 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,850/3,350 rpm
Specifications Rated Voltage
230 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
28/30 dBA
