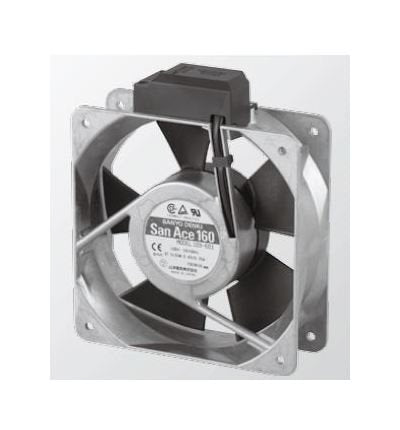

San Ace 160 Series AC Fan with Sensor
San Ace 160 Series AC Fan with Sensor
SKU:SAN-0ddc6f
Efficient cooling with reliable performance for industrial and institutional applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
San Ace 160 Series AC Fan with Sensor
$89.99
Quantity: 1
Claim Your Seller Account
San Ace 160 Series AC Fan with Sensor
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 160 Series AC Fan with Sensor is a reliable cooling solution designed for industrial and institutional applications. With a durable aluminum frame and UL94V-1 rated plastics, this fan ensures safe and efficient operation. It meets dielectric strength requirements for AC and DC inputs, offering a secure electrical connection. Operating within a temperature range of -10 to +60°C, this fan provides a maximum airflow of 8.5 m³/min and a sound pressure level of 30 dBA. With an expected life of 25,000 hours at 60°C, it offers long-term performance and sustainability in demanding environments.
Product Specifications
Specifications Current
0.23/0.18 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute

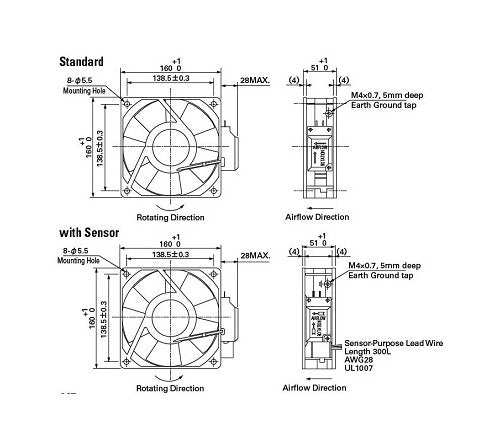

Specifications Dimensions
160Ã160Ã51
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
37.5/33 W
Specifications Locked Rotor Current
0.36/0.35 A
Specifications Mass
1100 g
Specifications Maximum Air Flow
7.2/8.5 m³/min | 254.4/300.4 ft³/min
Specifications Maximum Static Pressure
156.8/166.6 Pa | 0.630/0.669 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-10 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,850/3,350 rpm
Specifications Rated Voltage
200 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
28/30 dBA
