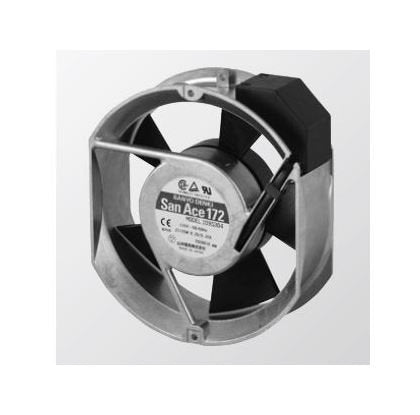

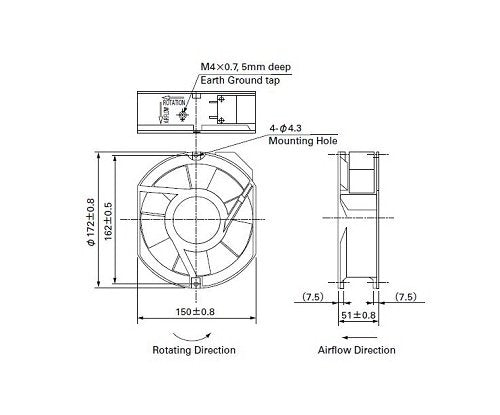

The San Ace 172 Series AC Fan, model 109S301, is a high-performance cooling solution designed for industrial and institutional applications. With a robust aluminum frame and UL94V-1 compliant plastic impeller, this fan ensures reliable cooling with a diameter of 172 mm and a compact design of 150 x 51 mm. Operating within a wide voltage range and rated at 100V, it delivers efficient performance at 50/60Hz. Boasting a maximum airflow of 6.4 m³/min and a maximum static pressure of 196 Pa, this fan is built for durability and optimal cooling, with an expected life of 25,000 hours at 60°C.
Product Specifications
Specifications Current
0.33/0.25 A
Specifications Diameter
172 mm
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
27/25 W
Specifications Length
150 mm
Specifications Locked Rotor Current
0.65/0.64 A
Specifications Mass
1000 g
Specifications Maximum Air Flow
5.3/6.4 m³/min | 187.3/226.1 ft³/min
Specifications Maximum Static Pressure
147/196 Pa | 0.590/0.787 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,900/3,500 rpm
Specifications Rated Voltage
100 V
Specifications Sound Pressure Level
51/56 dBA
Specifications Thickness
51 mm
