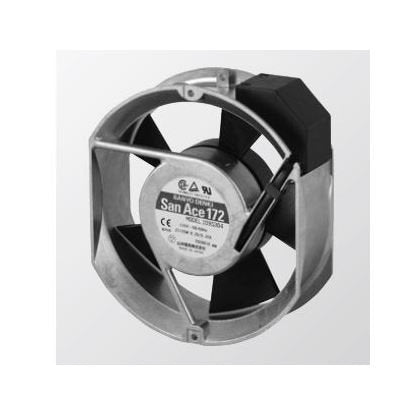

San Ace 172 Series AC Fan - 109S302, 172mm Diameter
San Ace 172 Series AC Fan - 109S302, 172mm Diameter
SKU:SAN-aea0a3
High-performance San Ace 172 Series AC Fan - Efficient cooling for industrial applications
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
San Ace 172 Series AC Fan - 109S302, 172mm Diameter
$59.99
Quantity: 1
Claim Your Seller Account
San Ace 172 Series AC Fan - 109S302, 172mm Diameter
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 172 Series AC Fan, model 109S302, is a high-performance cooling solution ideal for critical industrial applications. With a diameter of 172mm and a robust aluminum frame, this fan ensures efficient heat dissipation. Its UL94V-1 rated plastic impeller enhances safety, while the dielectric strength of 1,500VAC ensures reliable operation. Operating within a temperature range of -30 to +60°C, this fan delivers a maximum airflow of 6.4 m³/min with a low sound pressure level of 56 dBA. With a long service life of 25,000 hours at 60°C, this fan is a dependable choice for demanding environments.
Product Specifications
Specifications Current
0.16/0.13 A

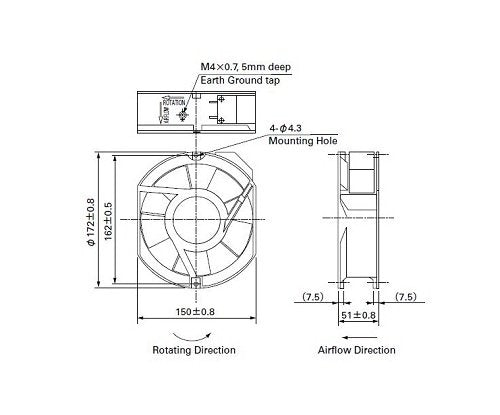

Specifications Diameter
172 mm
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
27/25 W
Specifications Length
150 mm
Specifications Locked Rotor Current
0.33/0.32 A
Specifications Mass
1000 g
Specifications Maximum Air Flow
5.3/6.4 m³/min | 187.3/226.1 ft³/min
Specifications Maximum Static Pressure
147/196 Pa | 0.590/0.787 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,900/3,500 rpm
Specifications Rated Voltage
200 V
Specifications Sound Pressure Level
51/56 dBA
Specifications Thickness
51 mm
