San Ace 172 Series AC Fan 172-312
San Ace 172 Series AC Fan 172-312
SKU:SAN-58f77b
High-performance San Ace 172 Series AC Fan for industrial and institutional cooling needs. Durable, safe, and reliable.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
San Ace 172 Series AC Fan 172-312
$99.99
Quantity: 1
Claim Your Seller Account
San Ace 172 Series AC Fan 172-312
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

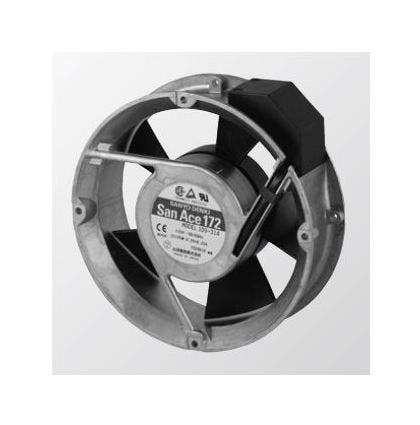

The San Ace 172 Series AC Fan 172-312 is a high-performance cooling solution designed for industrial and institutional applications. With a robust aluminum frame and UL94V-1 compliant plastic impeller, this fan ensures durability and safety. Operating at a rated voltage of 200V with a frequency of 50/60Hz, it delivers reliable performance with a maximum airflow of 6.4 m³/min and a maximum static pressure of 196 Pa. Built to last with an expected 25,000-hour lifespan at 60°C, this fan is ideal for critical cooling needs in a wide range of environments.
Product Specifications
Specifications Current
0.16/0.13 A
Specifications Diameter
172 mm
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
27/25 W
Specifications Locked Rotor Current
0.33/0.32 A
Specifications Mass
1000 g
Specifications Maximum Air Flow
5.3/6.4 m³/min | 187.3/226.1 ft³/min
Specifications Maximum Static Pressure
147/196 Pa | 0.590/0.787 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,900/3,500 rpm
Specifications Rated Voltage
200 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
47/51 dBA
Specifications Thickness
51 mm
