San Ace 172 Series AC Fan, 172mm Diameter

San Ace 172 Series AC Fan, 172mm Diameter

SKU:SAN-ac834f

Reliable San Ace 172 Series AC Fan with robust construction and high performance for critical applications.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

San Ace 172 Series AC Fan, 172mm Diameter

San Ace 172 Series AC Fan, 172mm Diameter

$49.99

Quantity: 1

Claim Your Seller Account

San Ace 172 Series AC Fan, 172mm Diameter

San Ace 172 Series AC Fan, 172mm Diameter

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

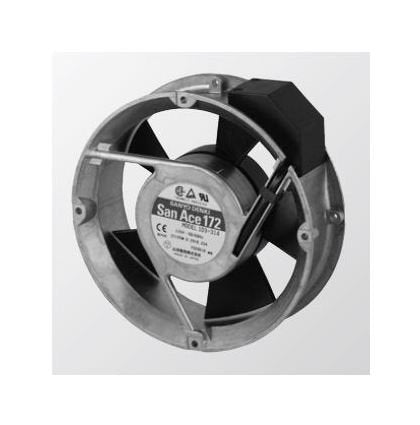

The San Ace 172 Series AC Fan is a reliable cooling solution designed for critical applications. With a robust aluminum frame and UL94V-1 rated plastics impeller, this fan ensures efficient cooling with a dielectric strength of 1,500VAC. Operating within a wide voltage range and offering a high-rated speed of 3,500 rpm, this fan delivers a maximum air flow of 6.4 m³/min. Its compliance with industry standards guarantees performance and durability, making it ideal for institutional and government procurement needs.

Product Specifications

Specifications Current
0.33/0.25 A
Specifications Diameter
172 mm
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
27/25 W
Specifications Locked Rotor Current
0.65/0.64 A
Specifications Mass
1000 g
Specifications Maximum Air Flow
5.3/6.4 m³/min | 187.3/226.1 ft³/min
Specifications Maximum Static Pressure
147/196 Pa | 0.590/0.787 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,900/3,500 rpm
Specifications Rated Voltage
100 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
47/51 dBA
Specifications Thickness
51 mm
