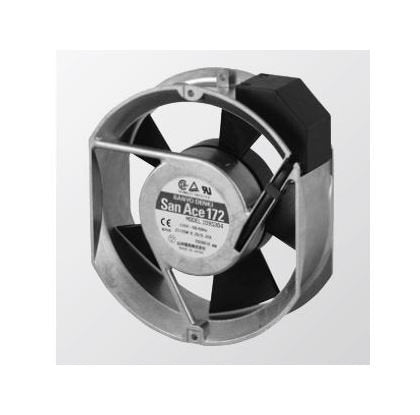

San Ace 172 Series AC Fan 172S304
San Ace 172 Series AC Fan 172S304
SKU:SAN-233ac0
High-performance San Ace 172 Series AC Fan for industrial cooling applications
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
San Ace 172 Series AC Fan 172S304
$49.99
Quantity: 1
Claim Your Seller Account
San Ace 172 Series AC Fan 172S304
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 172 Series AC Fan 172S304 is a high-performance cooling solution designed for industrial and institutional applications. With a diameter of 172mm and a maximum air flow of 6.4 m³/min, this fan ensures efficient thermal management. It meets stringent criteria for durability with an aluminum frame and UL94V-1 rated plastics impeller. Operating within a wide temperature range of -30 to +60 ºC, and with a dielectric strength of 1,500VAC, it guarantees reliable performance. Trusted for 25,000 operational hours at 60ºC, this fan is a dependable choice for demanding environments.
Product Specifications
Specifications Current
0.29/0.22 A

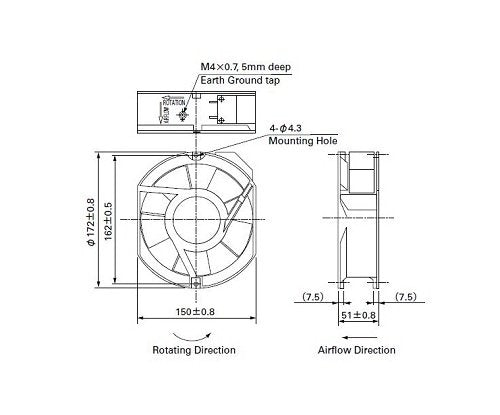

Specifications Diameter
172 mm
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
27/25 W
Specifications Length
150 mm
Specifications Locked Rotor Current
0.55/0.54 A
Specifications Mass
1000 g
Specifications Maximum Air Flow
5.3/6.4 m³/min | 187.3/226.1 ft³/min
Specifications Maximum Static Pressure
147/196 Pa | 0.590/0.787 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,900/3,500 rpm
Specifications Rated Voltage
115 V
Specifications Sound Pressure Level
51/56 dBA
Specifications Thickness
51 mm
