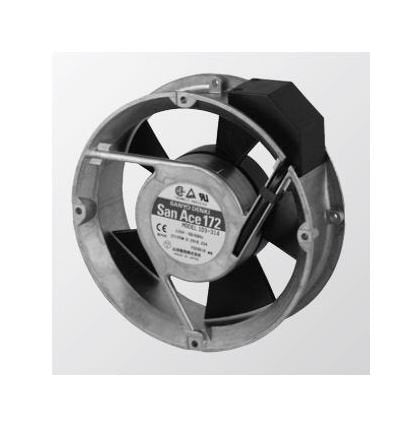

San Ace 172 Series AC Fan - Model 109-314
San Ace 172 Series AC Fan - Model 109-314
SKU:SAN-0eb1e3
Powerful, durable AC Fan - Ideal for cooling with safety & efficiency
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
San Ace 172 Series AC Fan - Model 109-314
$79.99
Quantity: 1
Claim Your Seller Account
San Ace 172 Series AC Fan - Model 109-314
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 172 Series AC Fan - Model 109-314 is a top-of-the-line cooling solution that combines a 172mm diameter, 51mm thickness, and 115V rated voltage for efficient cooling performance. Made with aluminum frame and UL94V-1 rated plastics, this fan ensures durability and safety. With a dielectric strength of 1,500VAC, it meets stringent institutional procurement standards. Operating quietly at 47-51 dBA, the fan delivers a maximum air flow of 5.3-6.4 m³/min, ideal for intense cooling needs. Designed for reliability, it offers a long lifespan of 25,000 hours at 60°C, making it a cost-effective and dependable choice.
Product Specifications
Specifications Current
0.29/0.22 A

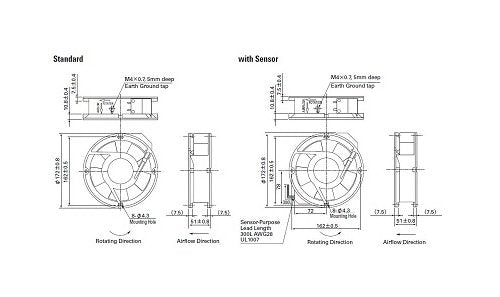

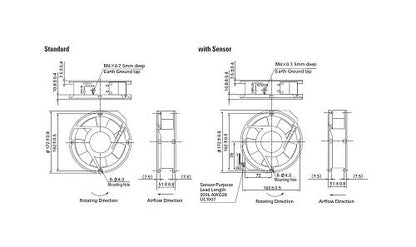

Specifications Diameter
172 mm
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
27/25 W
Specifications Locked Rotor Current
0.55/0.54 A
Specifications Mass
1000 g
Specifications Maximum Air Flow
5.3/6.4 m³/min | 187.3/226.1 ft³/min
Specifications Maximum Static Pressure
147/196 Pa | 0.590/0.787 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,900/3,500 rpm
Specifications Rated Voltage
115 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
47/51 dBA
Specifications Thickness
51 mm
