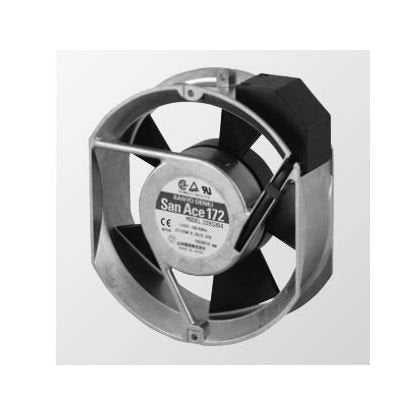

San Ace 172 Series AC Fan - Model 109S303
San Ace 172 Series AC Fan - Model 109S303
SKU:SAN-8aaea4
Powerful and reliable San Ace 172 Series AC Fan - Model 109S303, ideal for industrial cooling applications.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
San Ace 172 Series AC Fan - Model 109S303
$69.99
Quantity: 1
Claim Your Seller Account
San Ace 172 Series AC Fan - Model 109S303
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 172 Series AC Fan, Model 109S303, is a high-performance cooling solution designed for industrial and institutional applications. With a diameter of 172mm and a length of 150mm, this fan delivers exceptional air flow and static pressure to keep systems running efficiently. Constructed with aluminum frame and UL94V-1 rated plastics, it meets stringent safety standards. Operating at 230V with a rated speed of 2,900/3,500 rpm, this fan ensures reliable cooling performance with a sound pressure level of 51/56 dBA. With an expected life of 25,000 hours at 60°C, this fan is a durable and efficient choice for cooling systems.
Product Specifications
Specifications Current
0.14/0.11 A

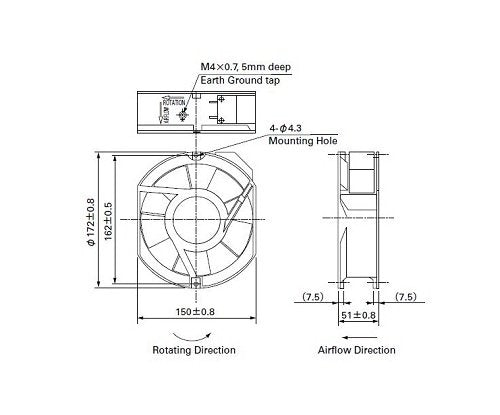

Specifications Diameter
172 mm
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
27/25 W
Specifications Length
150 mm
Specifications Locked Rotor Current
0.28/0.27 A
Specifications Mass
1000 g
Specifications Maximum Air Flow
5.3/6.4 m³/min | 187.3/226.1 ft³/min
Specifications Maximum Static Pressure
147/196 Pa | 0.590/0.787 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,900/3,500 rpm
Specifications Rated Voltage
230 V
Specifications Sound Pressure Level
51/56 dBA
Specifications Thickness
51 mm
