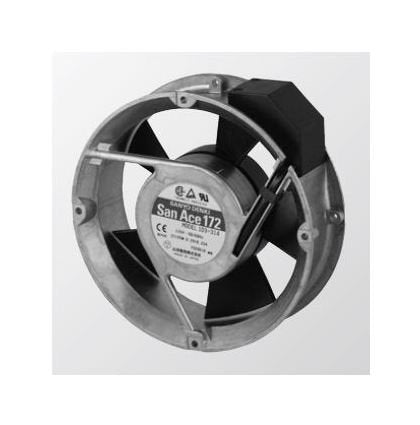

San Ace 172 Series AC Fan with Sensor
San Ace 172 Series AC Fan with Sensor
SKU:SAN-42de64
Powerful and reliable, the San Ace 172 Series AC Fan with Sensor ensures optimal cooling performance for industrial and institutional needs.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
San Ace 172 Series AC Fan with Sensor
$89.99
Quantity: 1
Claim Your Seller Account
San Ace 172 Series AC Fan with Sensor
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 109-373 San Ace 172 Series AC Fan with Sensor is a premium cooling solution designed for industrial and institutional applications. With a diameter of 172mm and a thickness of 51mm, this fan provides exceptional airflow and performance. The aluminum frame and UL94V-1 rated plastic impeller ensure durability and safety. Operating at 230V with a frequency of 50/60Hz, this fan offers a maximum air flow of 6.4 m³/min and a maximum static pressure of 196 Pa. With a sound pressure level of 51 dBA and an expected life of 25,000 hours at 60°C, this fan guarantees reliable and efficient cooling in challenging environments.
Product Specifications
Specifications Current
0.14/0.11 A
Specifications Diameter
172 mm
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
27/25 W
Specifications Locked Rotor Current
0.28/0.27 A
Specifications Mass
1000 g
Specifications Maximum Air Flow
5.3/6.4 m³/min | 187.3/226.1 ft³/min
Specifications Maximum Static Pressure
147/196 Pa | 0.590/0.787 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-10 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,900/3,500 rpm
Specifications Rated Voltage
230 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
47/51 dBA
Specifications Thickness
51 mm
