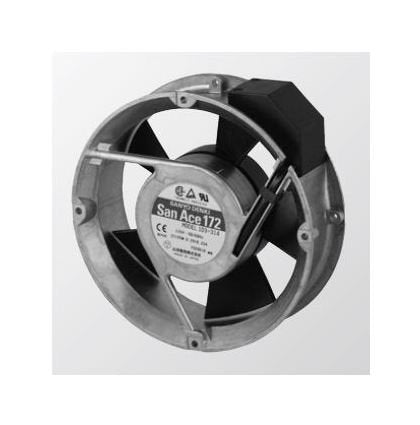

San Ace 172 Series AC Fan with Sensor
San Ace 172 Series AC Fan with Sensor
SKU:SAN-59a76c
High-performance San Ace 172 Series AC Fan with Sensor, ideal for industrial and institutional cooling applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
San Ace 172 Series AC Fan with Sensor
$59.99
Quantity: 1
Claim Your Seller Account
San Ace 172 Series AC Fan with Sensor
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 172 Series AC Fan with Sensor is a reliable cooling solution designed for industrial and institutional applications. With a diameter of 172mm and aluminum frame construction, it ensures durability and efficient heat dissipation. This fan operates at 115V with a rated speed of 2900/3500 RPM, delivering a maximum air flow of 5.3/6.4 m³/min. Meeting stringent Dielectric Strength and Flammability (UL94V-1) standards, this fan offers high performance and longevity, making it ideal for government and institutional procurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Current
0.29/0.22 A
Specifications Diameter
172 mm
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
27/25 W
Specifications Locked Rotor Current
0.55/0.54 A
Specifications Mass
1000 g
Specifications Maximum Air Flow
5.3/6.4 m³/min | 187.3/226.1 ft³/min
Specifications Maximum Static Pressure
147/196 Pa | 0.590/0.787 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-10 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,900/3,500 rpm
Specifications Rated Voltage
115 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
47/51 dBA
Specifications Thickness
51 mm
