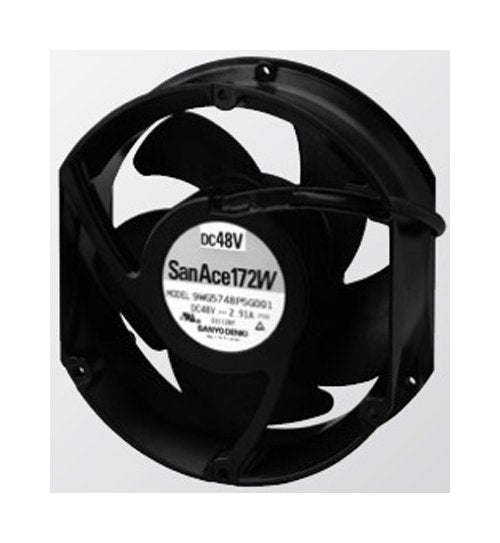

San Ace 172W Series Splash Proof Fan - 48V
San Ace 172W Series Splash Proof Fan - 48V
SKU:SAN-782b56
Powerful 48V San Ace 172W Series Splash Proof Fan for industrial use, meets UL94V-1 flammability standards.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
San Ace 172W Series Splash Proof Fan - 48V
$79.99
Quantity: 1
Claim Your Seller Account
San Ace 172W Series Splash Proof Fan - 48V
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 9WG5748P5H001 San Ace 172W Series Splash Proof Fan is a reliable cooling solution ideal for industrial and government applications. With dimensions of 172 x 150 x 51 mm and a durable aluminum frame, this fan guarantees high performance and longevity. Certified to meet UL94V-1 flammability standards, this fan operates within a wide temperature range of -30 to +70 ºC. It offers a PWM duty cycle of 100%, ensuring efficient airflow management and noise reduction. Trusted by government agencies and institutions, this fan complies with federal procurement standards and industry-specific certifications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Control Lead Wire Color
Brown
Specifications Dimensions
172 x 150 x 51 mm
Specifications Expected Life At 40c
70,000 hours
Specifications Frame Material
Aluminum
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
860 g
Specifications Maximum Air Flow
11.60 m³/min | 410 ft³/min
Specifications Maximum Rated Current
1.62 A
Specifications Maximum Rated Input Power
78.0 W
Specifications Maximum Rated Speed
6500 rpm
Specifications Maximum Sound Pressure Level
71 dBA
Specifications Maximum Static Pressure
770 Pa | 3.09 inH2O
Specifications Minimum Air Flow
3.59 m³/min | 127 ft³/min
Specifications Minimum Rated Current
0.21 A
Specifications Minimum Rated Input Power
10.1 W
Specifications Minimum Rated Speed
2000 rpm
Specifications Minimum Sound Pressure Level
40 dBA
Specifications Minimum Static Pressure
75.1 Pa | 0.30 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
40.8 to 55.2 V
Specifications Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Pulse Width Modulation Pwm Frequency
25 kHz
Specifications Rated Voltage
48 V
Specifications Sensor Lead Wire Color
Yellow
