San Ace 172W Splash Proof Fan
San Ace 172W Splash Proof Fan
SKU:SAN-7443aa
High-performance 172W splash-proof fan for industrial cooling applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
San Ace 172W Splash Proof Fan
$89.99
Quantity: 1
Claim Your Seller Account
San Ace 172W Splash Proof Fan
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

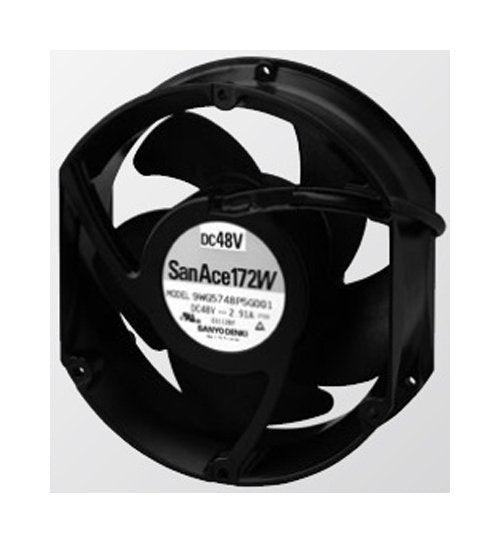

The 9WG5748P5G001 San Ace 172W Series Splash Proof Fan combines advanced engineering with premium materials for optimal performance. With dimensions of 172 x 150 x 51 mm and a lightweight aluminum frame, this fan is ideal for industrial applications. Operating at 48V with PWM control, it offers a wide voltage range from 40.8 to 55.2V. Delivering a maximum air flow of 15.46 m³/min and a maximum static pressure of 1000 Pa, this fan ensures efficient cooling with low noise levels. With an expected life of 40,000 hours, this fan is a reliable choice for demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Control Lead Wire Color
Brown
Specifications Dimensions
172 x 150 x 51 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Aluminum
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
860 g
Specifications Maximum Air Flow
15.46 m³/min | 546 ft³/min
Specifications Maximum Rated Current
2.91 A
Specifications Maximum Rated Input Power
140.0 W
Specifications Maximum Rated Speed
8600 rpm
Specifications Maximum Sound Pressure Level
78 dBA
Specifications Maximum Static Pressure
1000 Pa | 4.02 inH2O
Specifications Minimum Air Flow
3.59 m³/min | 127 ft³/min
Specifications Minimum Rated Current
0.21 A
Specifications Minimum Rated Input Power
10.1 W
Specifications Minimum Rated Speed
2000 rpm
Specifications Minimum Sound Pressure Level
40 dBA
Specifications Minimum Static Pressure
75.1 Pa | 0.30 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
40.8 to 55.2 V
Specifications Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Pulse Width Modulation Pwm Frequency
25 kHz
Specifications Rated Voltage
48 V
Specifications Sensor Lead Wire Color
Yellow
