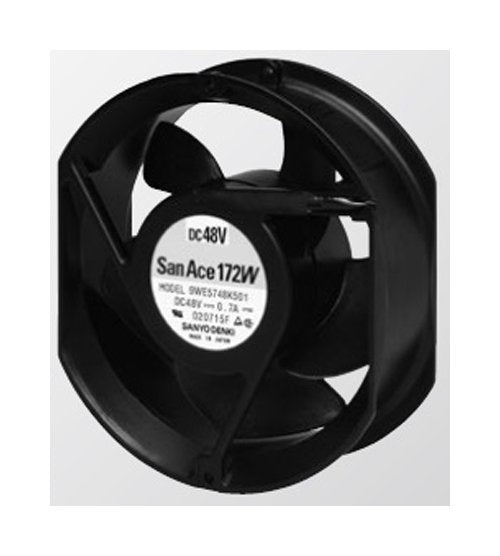

The San Ace 172W Splash Proof Fan is a high-performance cooling solution designed for both consumer and institutional applications. With dimensions of 172 x 150 x 51 mm and a durable aluminum frame, this fan ensures reliable and efficient operation. The fan features a UL94V-1 rated plastic impeller, providing excellent airflow with a rated voltage of 48V. Operating within a wide temperature range of -20 to 60°C, this fan delivers a steady air flow of 8.5 m³/min, making it ideal for various cooling needs. With a sound pressure level of 60 dBA and an expected life of 40,000 hours at 60°C, this splash-proof fan is a lasting and efficient choice.
Product Specifications
Specifications Air Flow
8.5 m³/min | 300 ft³/min
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black | Blue
Specifications Dimensions
172 x 150 x 51 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Aluminum
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
860 g
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to 60 ºC
Specifications Operating Voltage Range
40.8 to 55.2 V
Specifications Rated Current
0.7 A
Specifications Rated Input Power
33.6 W
Specifications Rated Speed
4100 rpm
Specifications Rated Voltage
48 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
60 dBA
Specifications Static Pressure
243 Pa | 0.976 inH2O
