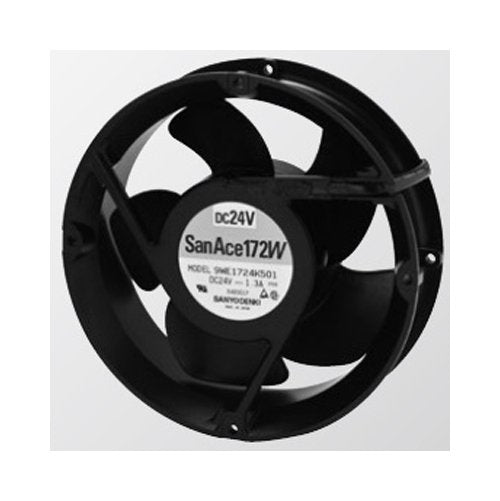

San Ace 172W Splash Proof Fan, 24V DC, 172x51mm
San Ace 172W Splash Proof Fan, 24V DC, 172x51mm
SKU:SAN-29e7b5
Trust the San Ace 172W Splash Proof Fan for reliable cooling in demanding environments. Durable construction, high airflow, and long lifespan.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
San Ace 172W Splash Proof Fan, 24V DC, 172x51mm
$39.99
Quantity: 1
Claim Your Seller Account
San Ace 172W Splash Proof Fan, 24V DC, 172x51mm
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 172W Series Splash Proof Fan is engineered for optimal performance in demanding environments. With a durable aluminum frame and UL94V-1 flammability rated plastic impeller, this fan ensures reliable cooling with a rated speed of 4100 rpm. Operating at a sound pressure level of 55 dBA, it provides a steady airflow of 8.5 m³/min. Ideal for industrial applications, this fan offers a long lifespan of 40,000 hours at 60°C. Trust in its quality construction and efficient cooling capabilities to enhance your systems.
Product Specifications
Specifications Air Flow
8.5 m³/min | 300.1 ft³/min
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black | Blue
Specifications Dimensions
172 x 51 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Aluminum
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
890 g
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to 60 ºC
Specifications Operating Voltage Range
20.4 to 27.6 V
Specifications Rated Current
1.3 A
Specifications Rated Input Power
31.2 W
Specifications Rated Speed
4100 rpm
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
55 dBA
Specifications Static Pressure
243 Pa | 0.97 inH2O
