San Ace 175W Splash Proof Centrifugal Fan
San Ace 175W Splash Proof Centrifugal Fan
SKU:SAN-08ce2e
High-performance San Ace 175W Splash Proof Centrifugal Fan for industrial cooling needs.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
San Ace 175W Splash Proof Centrifugal Fan
$89.99
Quantity: 1
Claim Your Seller Account
San Ace 175W Splash Proof Centrifugal Fan
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

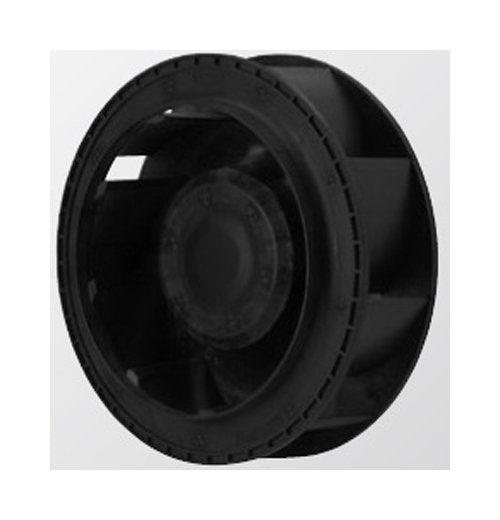

The San Ace 175W Splash Proof Centrifugal Fan is a robust cooling solution designed for demanding industrial environments. With dimensions of 175 x 69 mm and a durable aluminum frame coating, this fan ensures efficient heat dissipation and reliable performance. It features a UL94V-0 rated plastic impeller, operating at a rated voltage of 48 V with a wide operating voltage range of 36 to 60 V. The fan boasts a rated speed of 3,100 rpm, maximum airflow of 9.0 m³/min, and a maximum static pressure of 360 Pa, making it ideal for applications requiring high airflow and cooling efficiency. With an expected life of up to 70,000 hours at 40°C, this fan offers long-term reliability and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Control Lead Wire Color
Brown
Specifications Dimensions
175 x 69 mm
Specifications Expected Life At 40c
70,000 hours
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Aluminum (Black coating)
Specifications Impeller Material
Plastics (Flammability: UL94V-0)
Specifications Mass
760 g
Specifications Maximum Air Flow
9.0 m³/min | 318 ft³/min
Specifications Maximum Static Pressure
360 Pa | 1.44 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Note
Fan does not rotate when Pulse-Width Modulation (PWM) duty cycle is 0%.
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
36 to 60 V
Specifications Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Pulse Width Modulation Pwm Frequency
25 kHz
Specifications Rated Current
0.65 A
Specifications Rated Input Power
31.2 W
Specifications Rated Speed
3,100 rpm
Specifications Rated Voltage
48 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
64 dBA
