San Ace 40T Wide Temp Range Fan
San Ace 40T Wide Temp Range Fan
SKU:SAN-7fc860
High-performance San Ace 40T Wide Temperature Range Fan for critical cooling needs. Compact size, wide temp range, PWM control.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 40T Wide Temp Range Fan
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 40T Wide Temp Range Fan
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

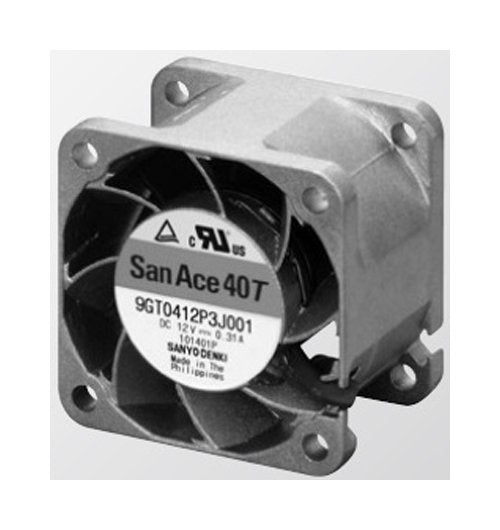

The 9GT0412P3J001 San Ace 40T Wide Temperature Range Fan is a high-performance cooling solution designed for demanding applications. With a compact 40 x 40 x 28 mm size and aluminum frame, this fan is lightweight yet durable. The impeller material is UL94V-1 rated plastics, ensuring safety and reliability. It operates at a voltage range of 10.2 to 13.8 V with PWM control for precise speed modulation. Offering a wide temperature range of -40 to 85°C and low sound levels, this fan is ideal for critical cooling needs. With a rated speed of up to 11700 rpm and airflow of 0.52 m³/min, it provides efficient cooling in various environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Control Lead Wire Color
Brown
Specifications Dimensions
40 x 40x 28 mm
Specifications Expected Life At 85c
40000 hours
Specifications Frame Material
Aluminum
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
55 g
Specifications Maximum Air Flow
0.52 m³/min | 18.4 ft³/min
Specifications Maximum Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Maximum Rated Current
0.31 A
Specifications Maximum Rated Input Power
3.72 W
Specifications Maximum Rated Speed
11700 rpm
Specifications Maximum Sound Pressure Level
48 dBA
Specifications Maximum Static Pressure
206 Pa | 0.827 inH2O
Specifications Minimum Air Flow
0.18 m³/min | 6.36 ft³/min
Specifications Minimum Pulse Width Modulation Pwm Duty Cycle
30 %
Specifications Minimum Rated Current
0.08 A
Specifications Minimum Rated Input Power
0.96 W
Specifications Minimum Rated Speed
4100 rpm
Specifications Minimum Sound Pressure Level
21 dBA
Specifications Minimum Static Pressure
25.2 Pa | 0.100 inH2O
Specifications Non Condensing Storage Temperature
-40 to 85 ºC
Specifications Note
Fan does not rotate when Pulse-Width Modulation (PWM) duty cycle is 0%.
Specifications Operating Temperature Range
-40 to +85 ºC
Specifications Operating Voltage Range
10.2 to 13.8 V
Specifications Pulse Width Modulation Pwm Frequency
25 kHz
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
