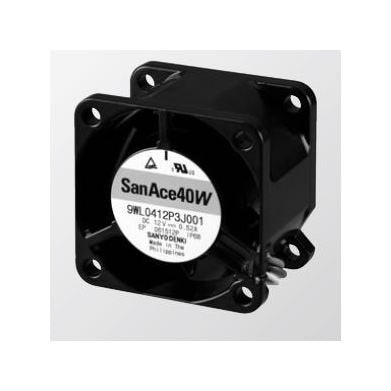

San Ace 40W Series Splash Proof Fan
San Ace 40W Series Splash Proof Fan
SKU:SAN-831436
The 9WL0412P3G001 San Ace 40W Series Splash Proof Fan is a reliable cooling solution with high performance and durability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 40W Series Splash Proof Fan
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 40W Series Splash Proof Fan
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 9WL0412P3G001 San Ace 40W Series Splash Proof Fan is a high-quality cooling solution for industrial and institutional applications. With dimensions of 40x40x28 mm and a durable aluminum frame coated in black, this fan ensures reliable performance in various environments. It features a plastic impeller with UL94V-0 flammability rating, operating at a rated voltage of 12V within a voltage range of 10.8-13.2V. With a maximum speed of 15500 rpm, air flow of 0.56 m³/min, and a maximum static pressure of 310 Pa, this fan provides efficient cooling while maintaining low noise levels. It meets industry standards for sound pressure and operating temperatures, with an expected life of 150,000 hours at 60°C.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black

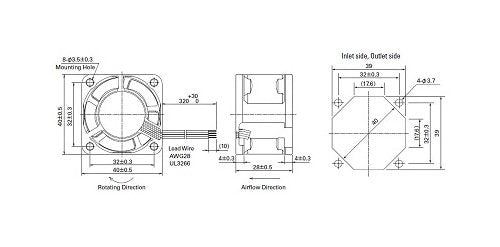

Specifications Dimensions
40 Ã 40 Ã 28 mm
Specifications Expected Life At 60c
150,000 hours
Specifications Frame Material
Aluminum (Black coating)
Specifications Impeller Material
Plastics (Flammability: UL94V-0)
Specifications Mass
70 g
Specifications Maximum Air Flow
0.56 m³/min | 19.7 ft³/min
Specifications Maximum Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Maximum Rated Current
0.4 A
Specifications Maximum Rated Input Power
4.80 W
Specifications Maximum Rated Speed
15500 rpm
Specifications Maximum Sound Pressure Level
47 dBA
Specifications Maximum Static Pressure
310 Pa | 1.24 inH2O
Specifications Minimum Air Flow
0.12 m³/min | 4.2 ft³/min
Specifications Minimum Pulse Width Modulation Pwm Duty Cycle
20 %
Specifications Minimum Rated Current
0.06 A
Specifications Minimum Rated Input Power
0.72 W
Specifications Minimum Rated Speed
3300 rpm
Specifications Minimum Sound Pressure Level
18 dBA
Specifications Minimum Static Pressure
14.0 Pa | 0.06 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-20 to +70 ºC
Specifications Operating Voltage Range
10.8 to 13.2 V
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
