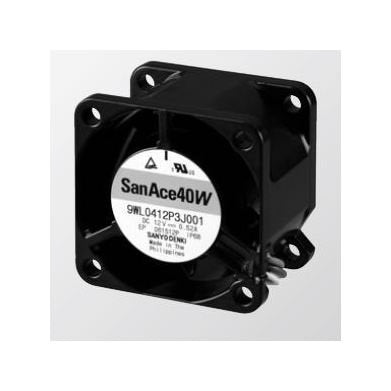

San Ace 40W Series Splash Proof Fan
San Ace 40W Series Splash Proof Fan
SKU:SAN-6befab
Reliable San Ace 40W Series Fan for industrial cooling, meets stringent standards. Ideal for gov't procurement.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 40W Series Splash Proof Fan
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 40W Series Splash Proof Fan
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 40W Series Splash Proof Fan is a durable and reliable cooling solution designed for industrial and institutional applications. With dimensions of 40x40x28mm, a rated voltage of 24V, and an expected life of 150,000 hours at 60°C, this fan delivers high performance and longevity. It meets stringent industry standards for flammability (UL94V-0), operating temperature (-20 to +70°C), sound pressure levels, and more, making it ideal for government and institutional procurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black

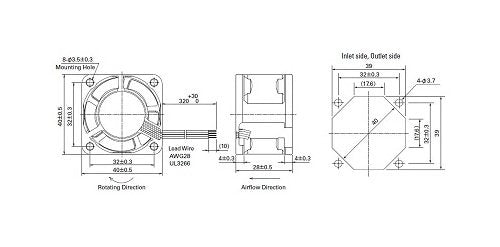

Specifications Dimensions
40 Ã 40 Ã 28 mm
Specifications Expected Life At 60c
150,000 hours
Specifications Frame Material
Aluminum (Black coating)
Specifications Impeller Material
Plastics (Flammability: UL94V-0)
Specifications Mass
70 g
Specifications Maximum Air Flow
0.56 m³/min | 19.7 ft³/min
Specifications Maximum Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Maximum Rated Current
0.2 A
Specifications Maximum Rated Input Power
4.80 W
Specifications Maximum Rated Speed
15500 rpm
Specifications Maximum Sound Pressure Level
47 dBA
Specifications Maximum Static Pressure
310 Pa | 1.24 inH2O
Specifications Minimum Air Flow
0.11 m³/min | 3.8 ft³/min
Specifications Minimum Pulse Width Modulation Pwm Duty Cycle
20 %
Specifications Minimum Rated Current
0.04 A
Specifications Minimum Rated Input Power
0.96 W
Specifications Minimum Rated Speed
3000 rpm
Specifications Minimum Sound Pressure Level
16 dBA
Specifications Minimum Static Pressure
11.6 Pa | 0.05 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-20 to +70 ºC
Specifications Operating Voltage Range
21.6 to 26.4 V
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
